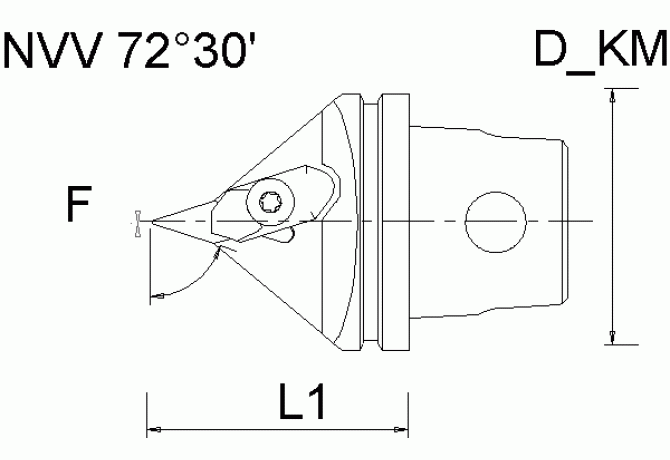

KM40NVVBN11

Артикул: KM40NVVBN11

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

KH-KMCE NVVKM40

DIN CSW1

KH-WP TN VBMR1103VBM

FamilyProducts

KM CUTTING UNIT PROFILING NVV

HAND Cutting direction

N - Neutral

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

72.5 Degree

L Cutting edge length

11 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-KMCE NVVKM40

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

KM40NVVBN11

OAL Overall length

40 mm

Working process

No working processes available
