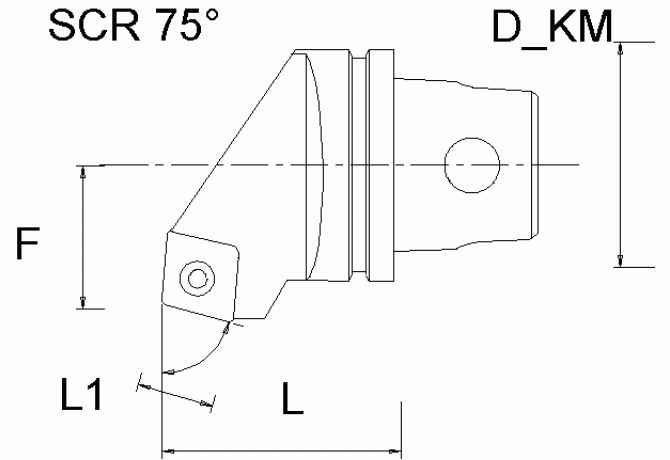

KM32SCRCR12

Артикул: KM32SCRCR12

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

KH-KMCE SCRKM32

DIN CSW1

KH-WP SC CCMT1204

FamilyProducts

CUTTING UNIT SREW ON INSERT SCR

HAND Cutting direction

R - Right

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

12.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-KMCE SCRKM32

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

KM32SCRCR12

OAL Overall length

35 mm

WF Functional width

19 mm

Working process

No working processes available
