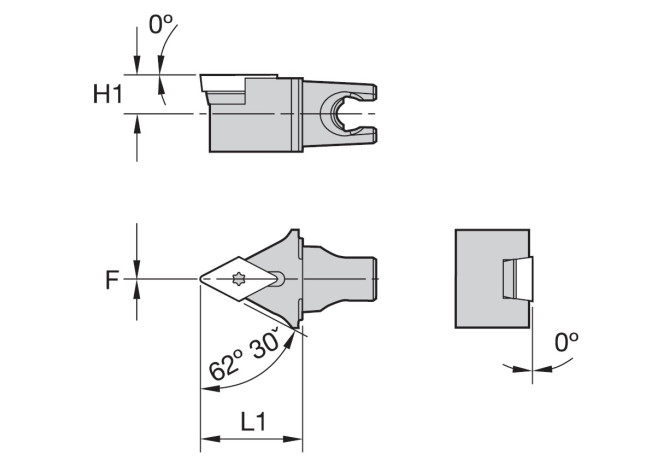

KM20SDNCN1126

KM20SDNCN1126 KM20SDNCN1126

KM20SDNCN1126

Kennametal
Артикул: 3487506
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
COMPC Company code
KH - Kennametal
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
KMT02000185
DIN CSW1
DC11T3 3N
FamilyProducts
SDNC 62°30' , Screw-On Inserts
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
9.5 mm
ID Technical product number
3487506
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
62.5 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0200
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KMT02000185
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
KM20SDNCN1126
OAL Overall length
25 mm
Working process
DDA - External turning
