Главная Каталог продукции СЗЦПК инструмент 14 309-07 - System tool for external turning KM100PRGCR32

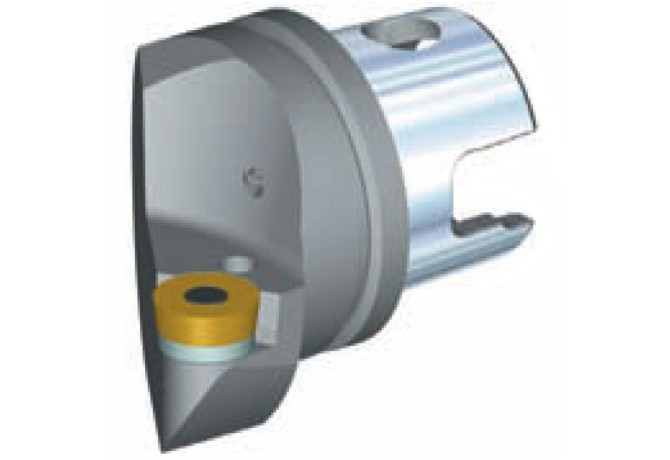

KM100PRGCR32

Артикул: 1151983

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

32 mm

BLDA Tool style code Position A

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2008

DIN

CCS10000195

DIN CSW1

RC3209M03N

EPSR Insert included angle

0 Degree

FamilyProducts

KM-PRGC Toolholder

HAND Cutting direction

R - Right

ID Technical product number

1151983

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-07 - System tool for external turning

L Cutting edge length

62.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS10000195

Name Identifying order number

KM100PRGCR32

OAL Overall length

90 mm

Working process

No working processes available
