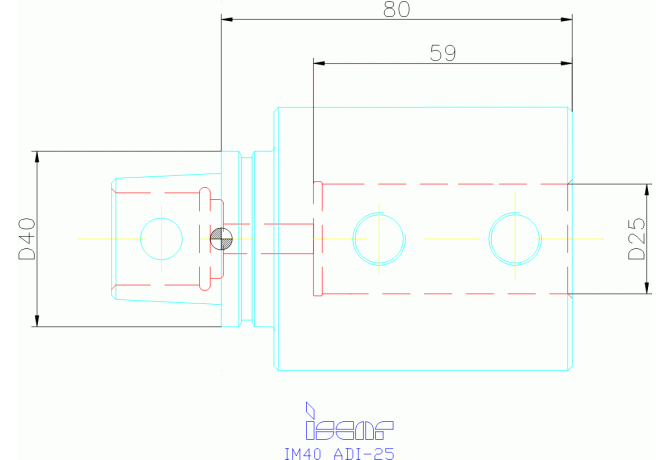

IM40 ADI-25

Артикул: 4500459

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

KMT04000185

FamilyProducts

IM40 ADI-25

ID Technical product number

4500459

Interface codes

J6 /

ISYC Subclass

309-07 - System tool for external turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT04000185

Name Identifying order number

IM40 ADI-25

OAL Overall length

80 mm

Working process

No working processes available
