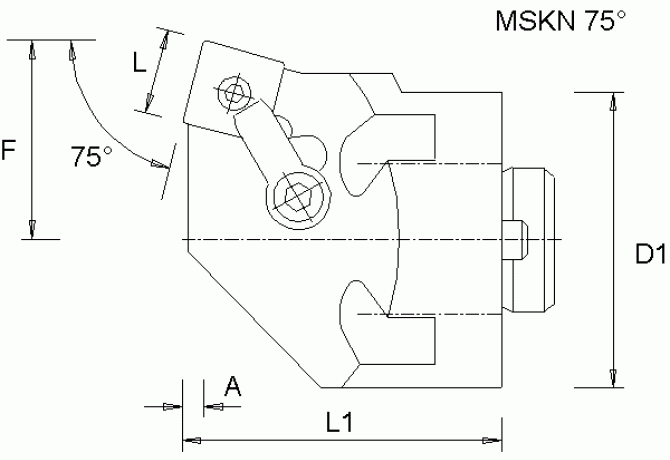

H40-MSKNL12

H40-MSKNL12 H40-MSKNL12

H40-MSKNL12

Kennametal
Артикул: H40-MSKNL12
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
H - Heavy metal, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL04002215
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
90 Degree
FamilyProducts
BORING HEAD MSKN 75°
GAMO Rake angle orthogonal
-5 Degree
HAND Cutting direction
L - Left
HF Functional height
20 mm
Interface codes
J6 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-10 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04002215
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
H40-MSKNL12
OAL Overall length
41 mm
WF Functional width
27 mm
WFA A dimension on wf
3 mm
Working process
No working processes available
