Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C6-PRSCL-45065-16

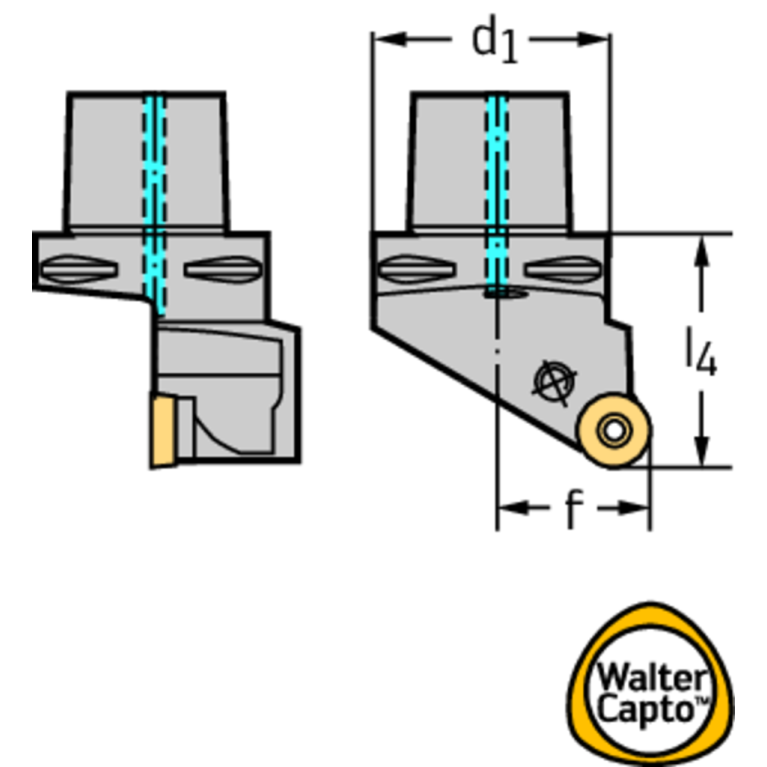

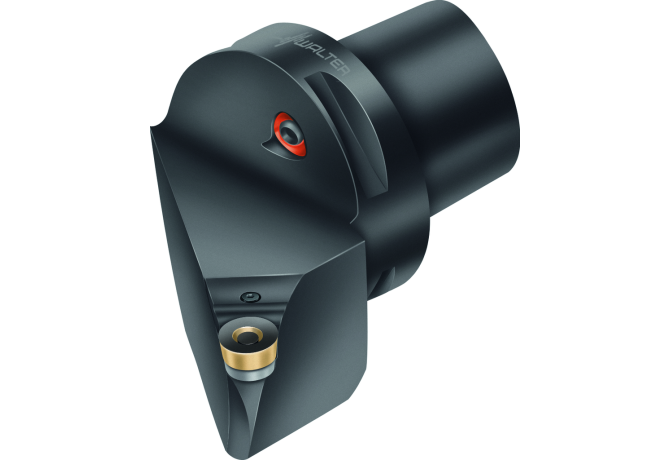

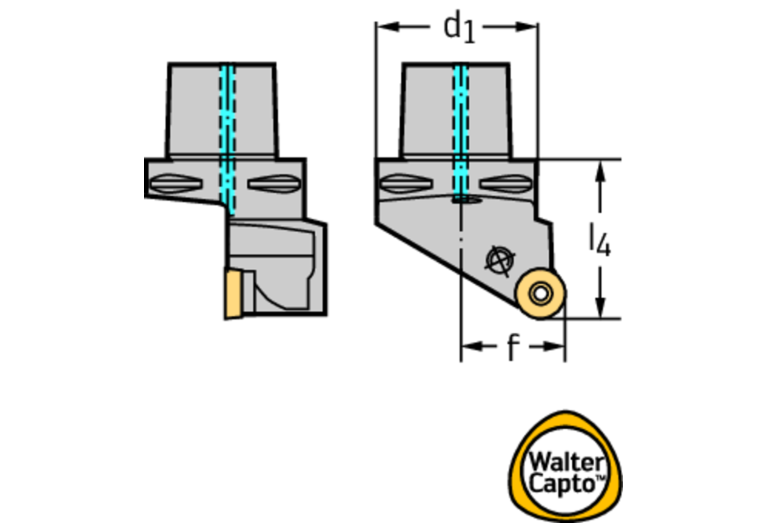

C6-PRSCL-45065-16

Артикул: 5012075

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

D1A Corner radius Pos. A

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

DIN CSW1

RC1605M02N

FamilyProducts

Turning tools – Lever clamping C...-PRSC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5012075

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0630$$$$

ISO CSW1

ISO$RC1605M02****M0

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

0 Degree

LAMS Inclination angle

0 Degree

LF Functional length

65 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

103 mm

LTA Length tool assembly

65 mm

MIID Master insert identification

RCMT 16 05 M0

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

C6-PRSCL-45065-16

OAL Overall length

103 mm

STDNO Standard

ISO26623-1

THSC Tool holder shape code

G - straight shank design

WF Functional width

45 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

1.26 kg
