Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C5-STGCL-35060-11

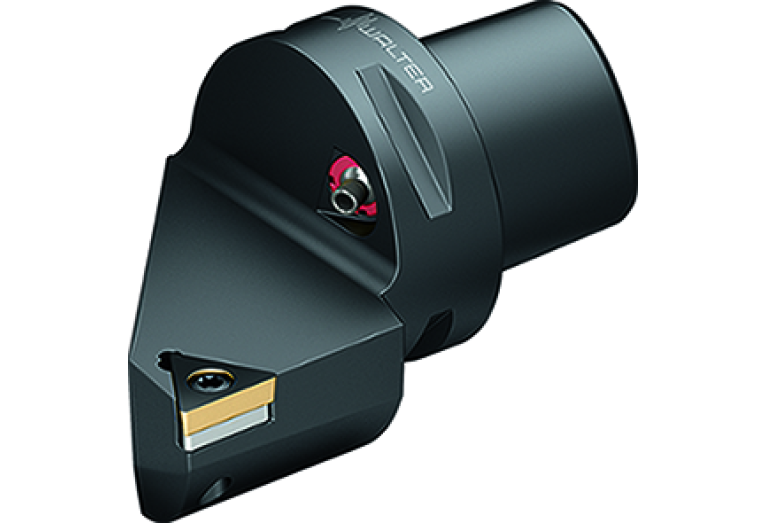

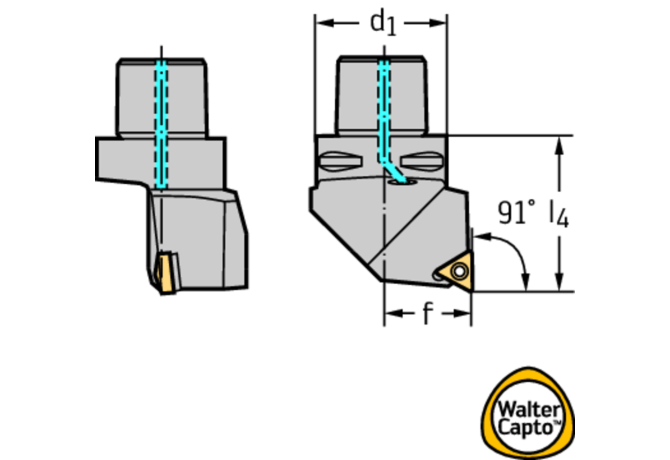

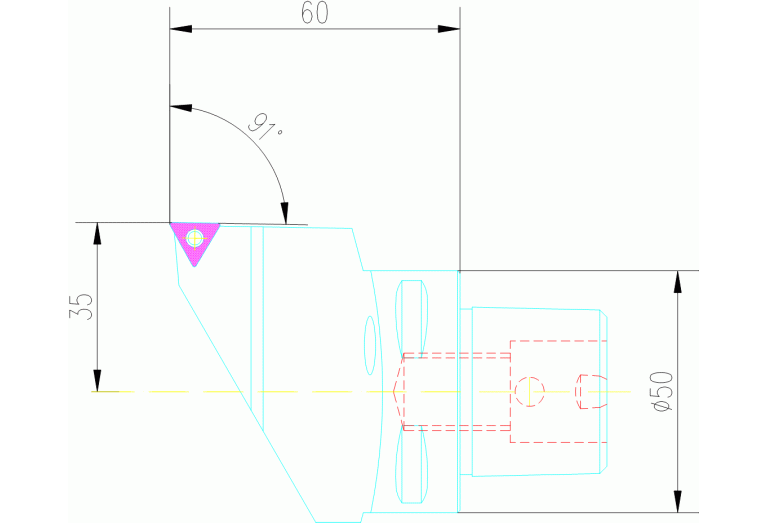

C5-STGCL-35060-11

C5-STGCL-35060-11 C5-STGCL-35060-11 C5-STGCL-35060-11 C5-STGCL-35060-11

C5-STGCL-35060-11

Walter
Артикул: 5012091
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DMIN Minimum bore diameter
165 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Turning tools – Screw clamping C...-STGC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5012091
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$TC1102003******
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
91 Degree
LAMS Inclination angle
0 Degree
LF Functional length
60 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
60 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
TCMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C5-STGCL-35060-11
OAL Overall length
90 mm
STDNO Standard
ISO26623-1
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.86 kg
