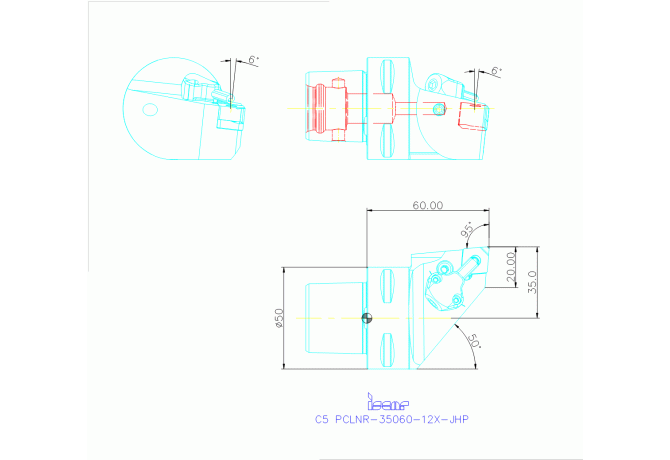

C5 PCLNR-35060-12X-JHP

C5 PCLNR-35060-12X-JHP C5 PCLNR-35060-12X-JHP

C5 PCLNR-35060-12X-JHP

Iscar
Артикул: 3603539
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/7/2014
DIN
CCS05000195
DIN CSW1
CN1207 2N
END KAPP ANGLE Kappungswinkel
0 Degree
EPSR Insert included angle
80 Degree
FamilyProducts
Lever Lock Tools for CNMX, 80° Negative Rhombic
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
3603539
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
MIID Master insert identification
CNMX1207
Name Identifying order number
C5 PCLNR-35060-12X-JHP
STDNO Standard
C5 PCLNR-35060-12X
THSC Tool holder shape code
A - offset shank design
Working process
No working processes available
