Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C3-PWLNR-22040-06

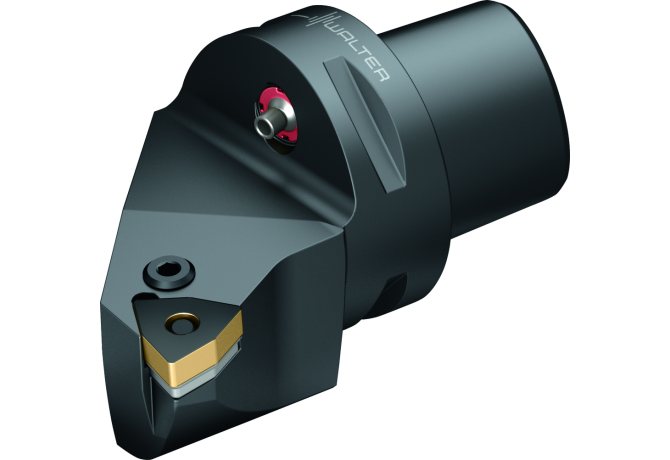

C3-PWLNR-22040-06

C3-PWLNR-22040-06 C3-PWLNR-22040-06 C3-PWLNR-22040-06

C3-PWLNR-22040-06

Walter
Артикул: 5013480
В наличии
В корзину
Описание
Характеристики

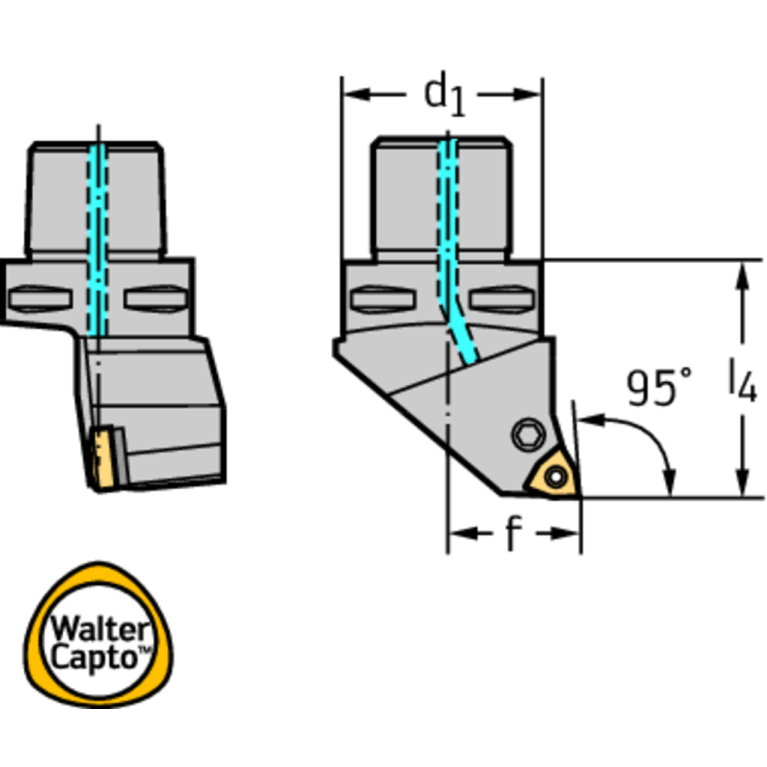

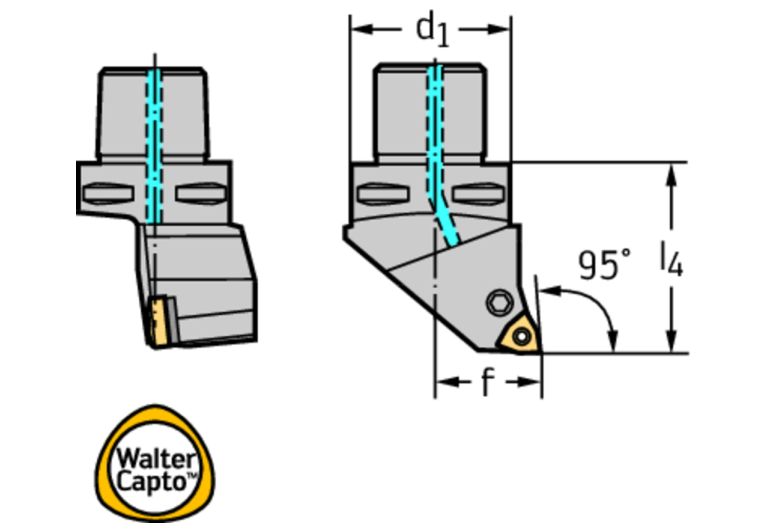

BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
WN0604992N
DMIN Minimum bore diameter
60 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Turning tools – Lever clamping C...-PWLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5013480
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0320$$$$
ISO CSW1
ISO$WN0604002******
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.5 mm
LAMS Inclination angle
-6 Degree
LF Functional length
40 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
59 mm
LTA Length tool assembly
40 mm
MIID Master insert identification
WNMG 06 04 08
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C3-PWLNR-22040-06
OAL Overall length
59 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
22 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.22 kg
