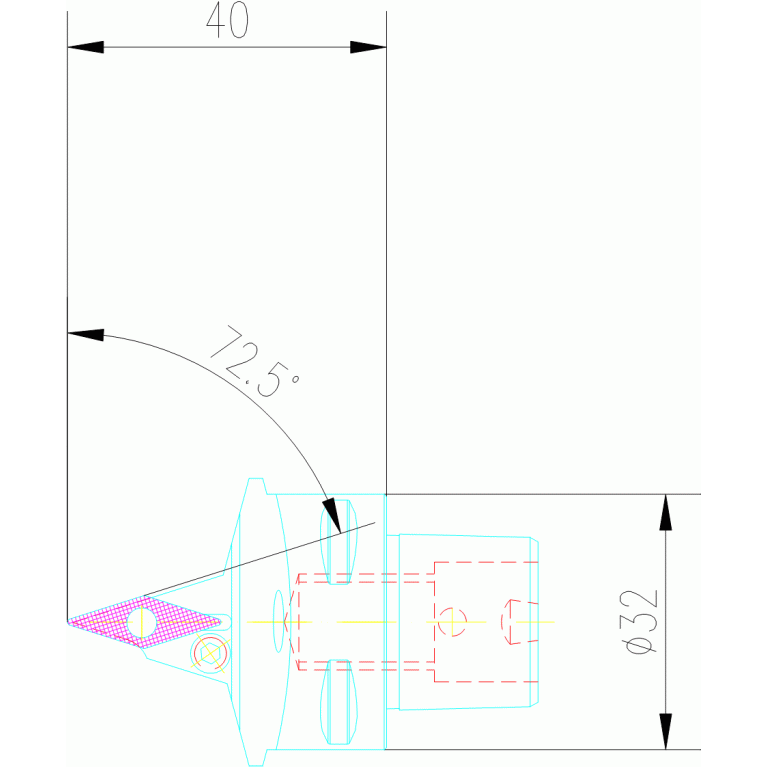

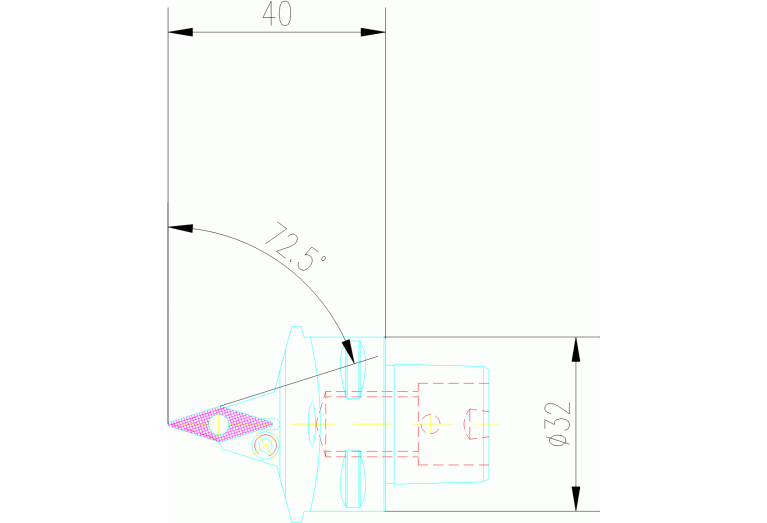

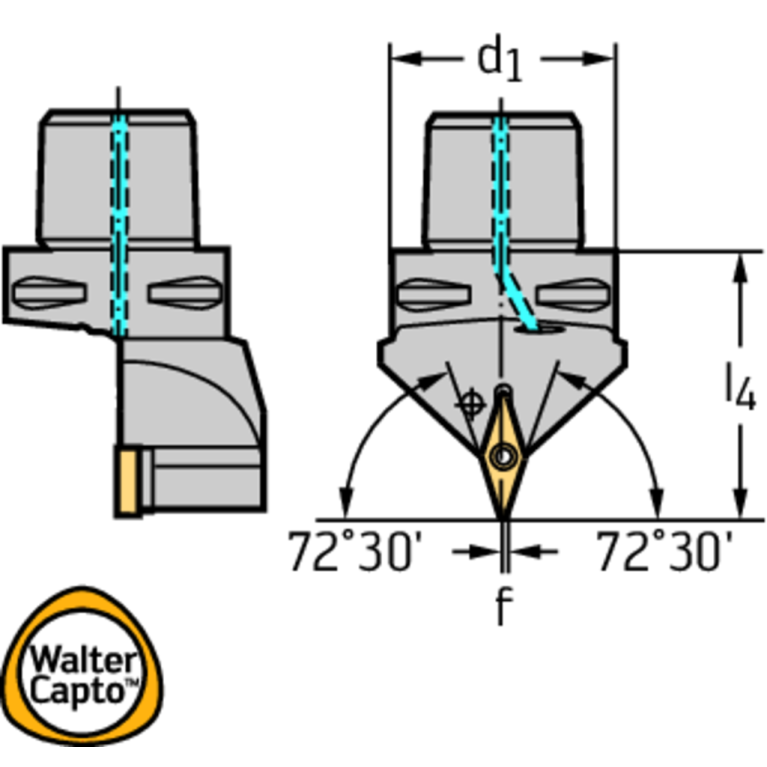

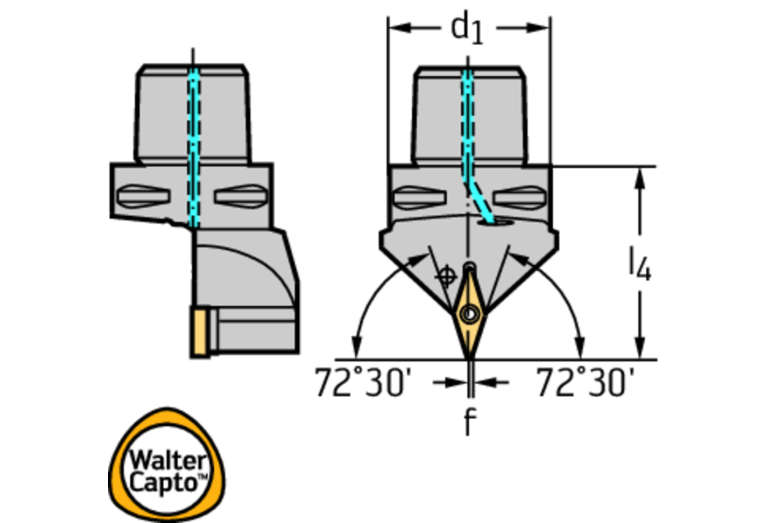

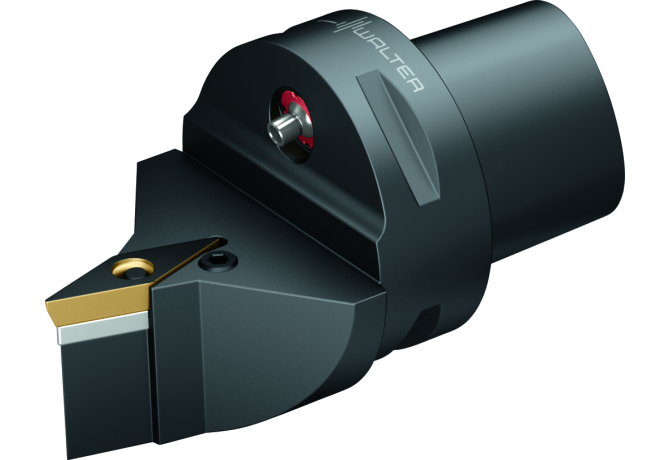

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C3-PVVBN-00040-11

C3-PVVBN-00040-11

C3-PVVBN-00040-11 C3-PVVBN-00040-11 C3-PVVBN-00040-11 C3-PVVBN-00040-11

C3-PVVBN-00040-11

Walter
Артикул: 5017103
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
VB1103992N
EPSR Insert included angle
35 Degree
FamilyProducts
Turning tools – Lever clamping C...-PVVB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
0 mm
ID Technical product number
5017103
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0320$$$$
ISO CSW1
ISO$VB1103002******
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
72.5 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LF Functional length
40 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
59 mm
LTA Length tool assembly
40 mm
MIID Master insert identification
VBMT 11 03 04
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C3-PVVBN-00040-11
OAL Overall length
59 mm
STDNO Standard
ISO26623-1
WF Functional width
0.3 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.176 kg
