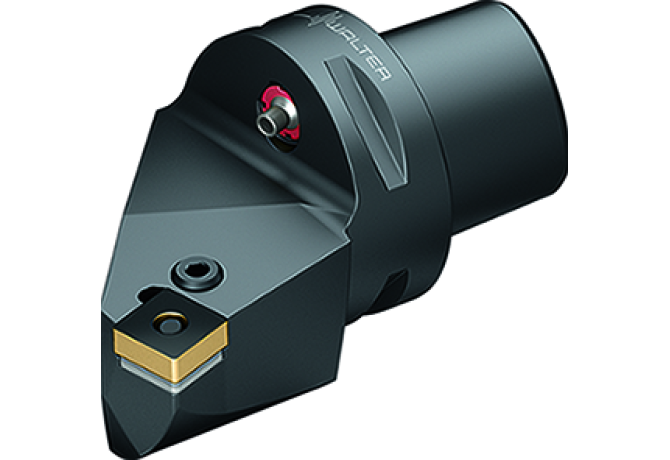

C3-PSKNL-22040-12

C3-PSKNL-22040-12 C3-PSKNL-22040-12 C3-PSKNL-22040-12 C3-PSKNL-22040-12

C3-PSKNL-22040-12

Walter
Артикул: 5017070
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DMIN Minimum bore diameter
60 mm
EPSR Insert included angle
90 Degree
FamilyProducts
Turning tools – Lever clamping C...-PSKN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5017070
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0320$$$$
ISO CSW1
ISO$SN1204002******
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
40 mm
LFA A dimension on lf
3.1 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
40 mm
LTA Length tool assembly
40 mm
MIID Master insert identification
SNMG 432
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C3-PSKNL-22040-12
OAL Overall length
62.1 mm
STDNO Standard
ISO26623-1
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
0.227 kg
