Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C5-DSSNL-35048-19

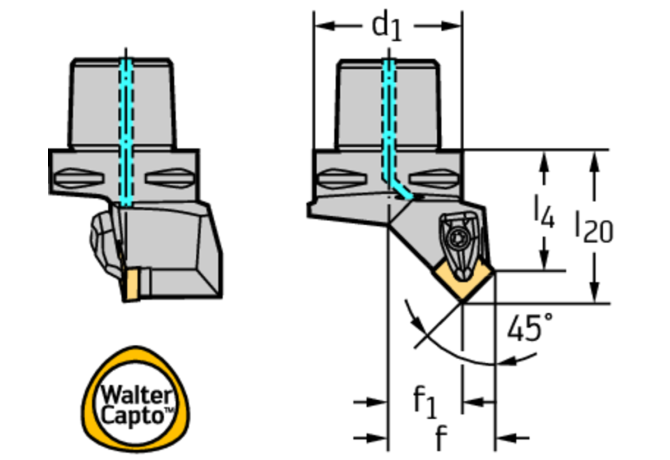

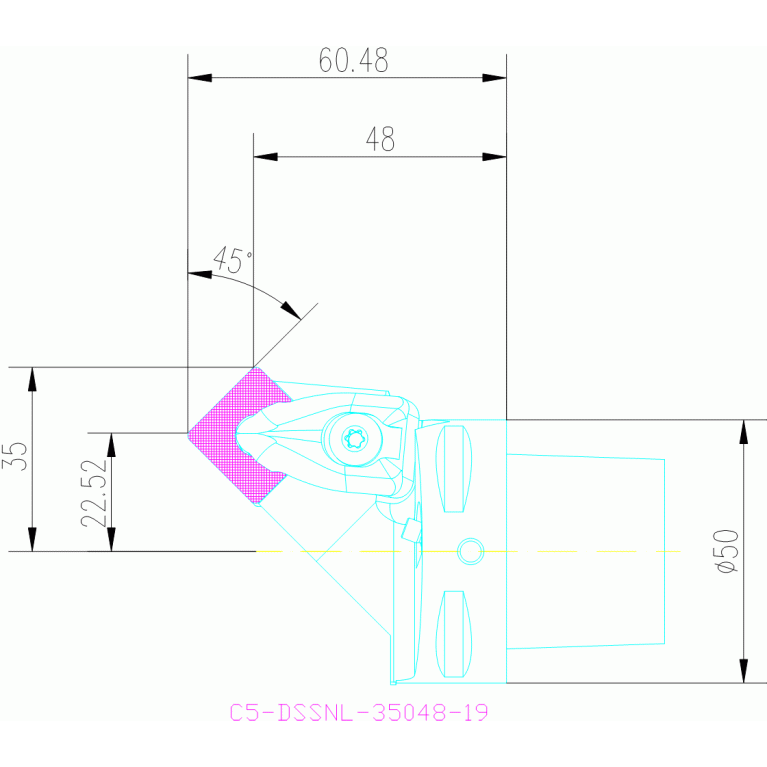

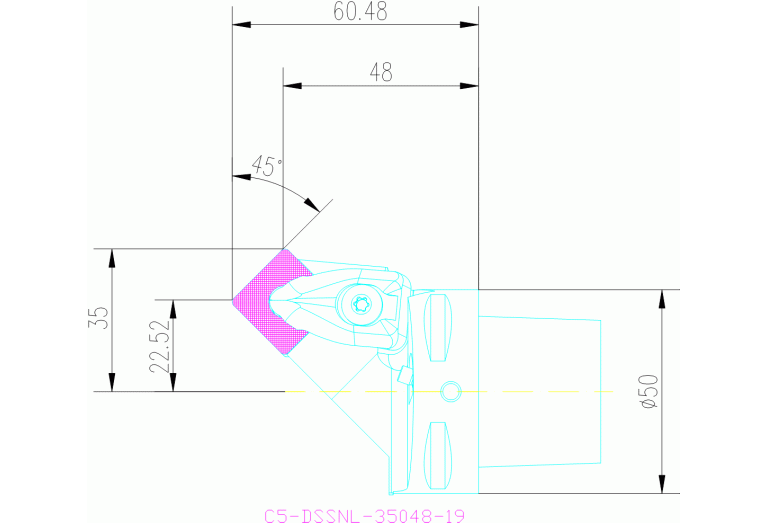

C5-DSSNL-35048-19

C5-DSSNL-35048-19 C5-DSSNL-35048-19 C5-DSSNL-35048-19

C5-DSSNL-35048-19

Walter
Артикул: 5042314
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DMIN Minimum bore diameter
165 mm
EPSR Insert included angle
90 Degree
FamilyProducts
Turning tools – Rigid clamping C...-DSSN
GAMO Rake angle orthogonal
-8 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5042314
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$SN1906002******
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree
LF Functional length
48 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
60.5 mm
LTA Length tool assembly
48 mm
MIID Master insert identification
SNMG 643
MTP Clamping type code
D
Name Identifying order number
C5-DSSNL-35048-19
OAL Overall length
90.48 mm
STDNO Standard
ISO26623-1
WF Functional width
35 mm
WFA A dimension on wf
12.48 mm
Working process
No working processes available
WT Weight of item
0.709 kg
