Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C5-SRSCR-35060-08

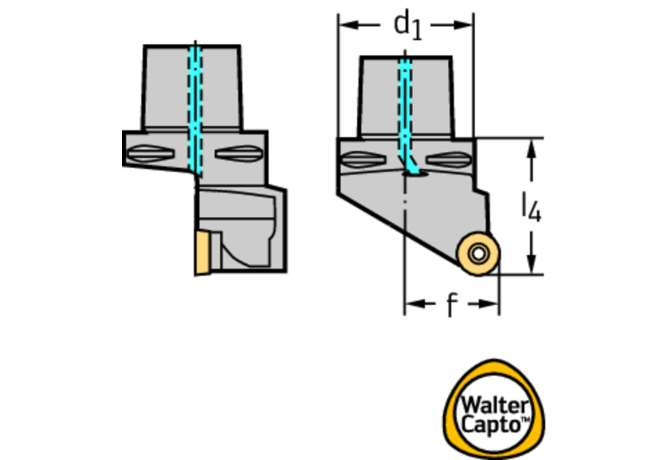

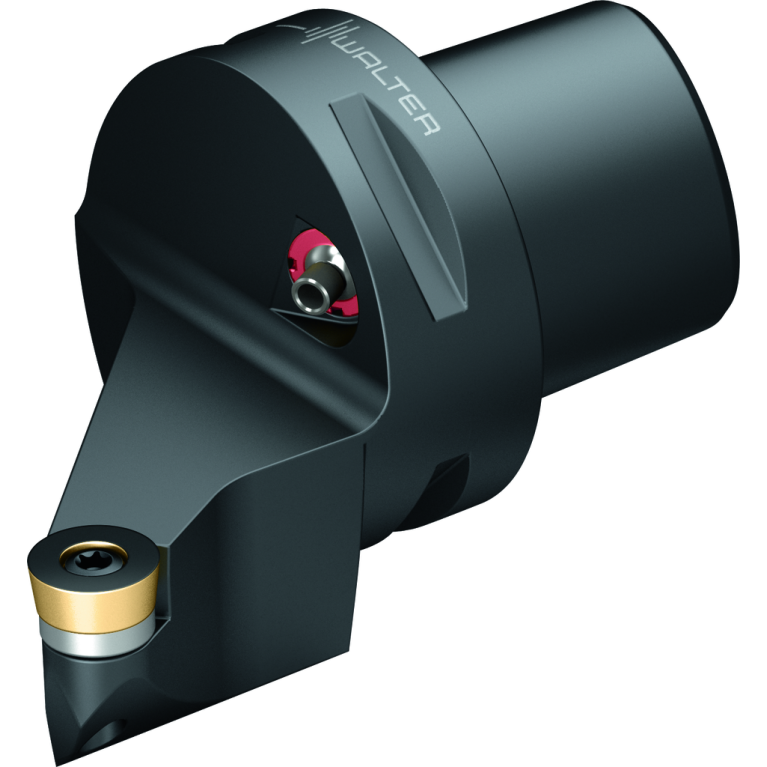

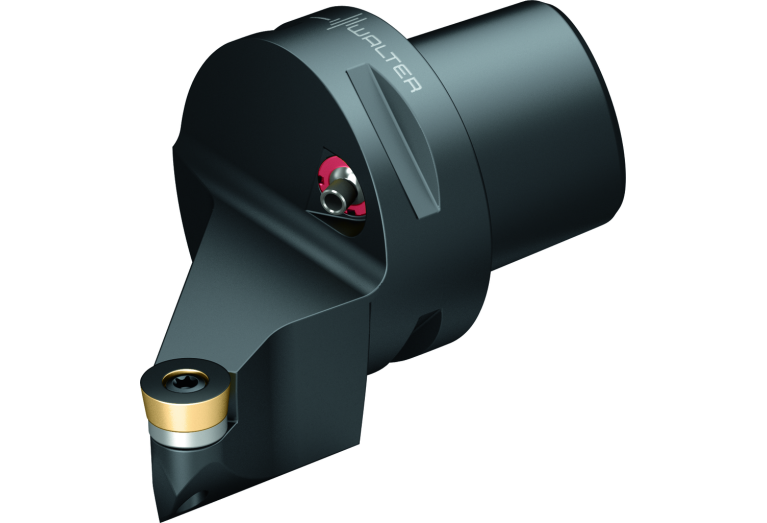

C5-SRSCR-35060-08

C5-SRSCR-35060-08 C5-SRSCR-35060-08 C5-SRSCR-35060-08

C5-SRSCR-35060-08

Walter
Артикул: 5012058
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
10
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
D1A Corner radius Pos. A
4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DIN CSW1
RC0803M03N
DMIN Minimum bore diameter
165 mm
FamilyProducts
Turning tools – Screw clamping C...-SRSC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5012058
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0500$$$$
ISO CSW1
ISO$RC0803M03****M0
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
0 Degree
LAMS Inclination angle
0 Degree
LF Functional length
60 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
90 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
RCMT 08 03 M0
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C5-SRSCR-35060-08
OAL Overall length
90 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
35 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.648 kg
