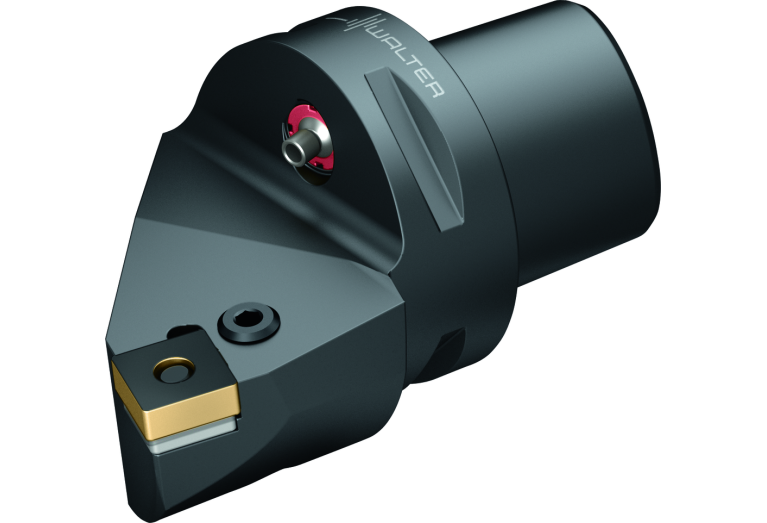

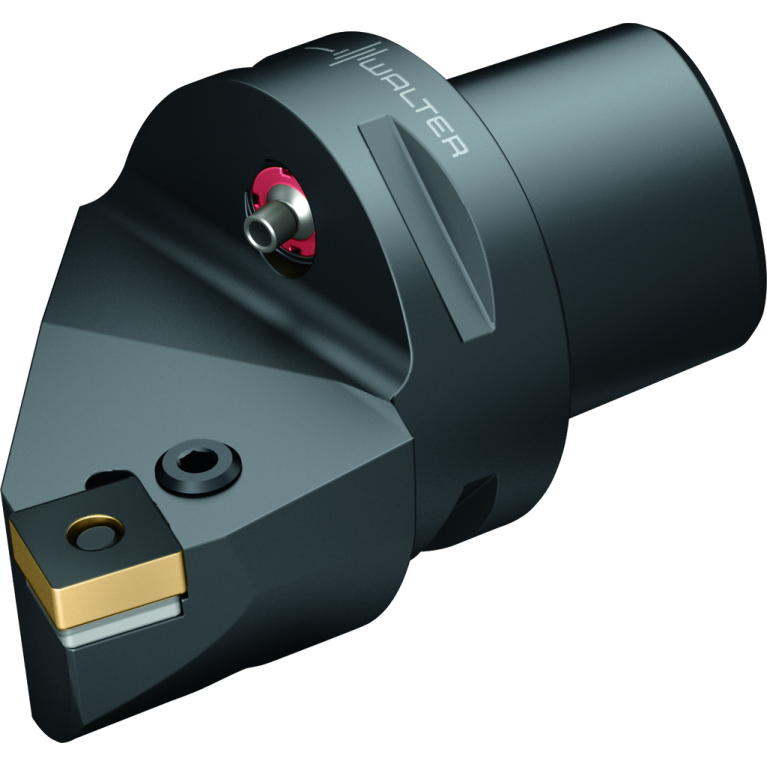

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning C4-PSRNL-22050-12

C4-PSRNL-22050-12

C4-PSRNL-22050-12 C4-PSRNL-22050-12 C4-PSRNL-22050-12 C4-PSRNL-22050-12

C4-PSRNL-22050-12

Walter
Артикул: 5011947
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
DIN CSW1
SN1204992N
EPSR Insert included angle
90 Degree
FamilyProducts
Turning tools – Lever clamping C...-PSRN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5011947
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0400$$$$
ISO CSW1
ISO$SN1204002******
ISYC Subclass
309-07 - System tool for external turning

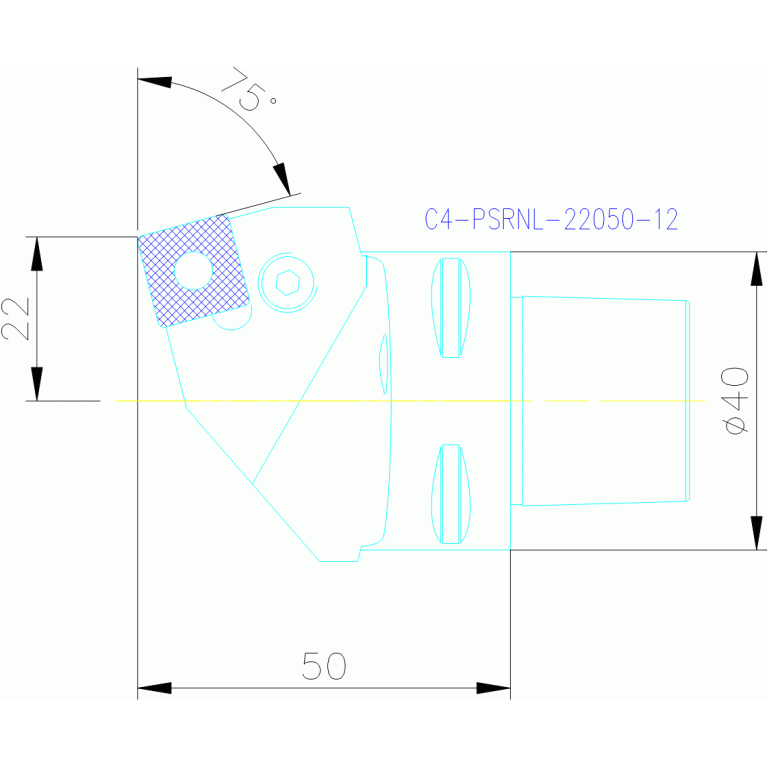

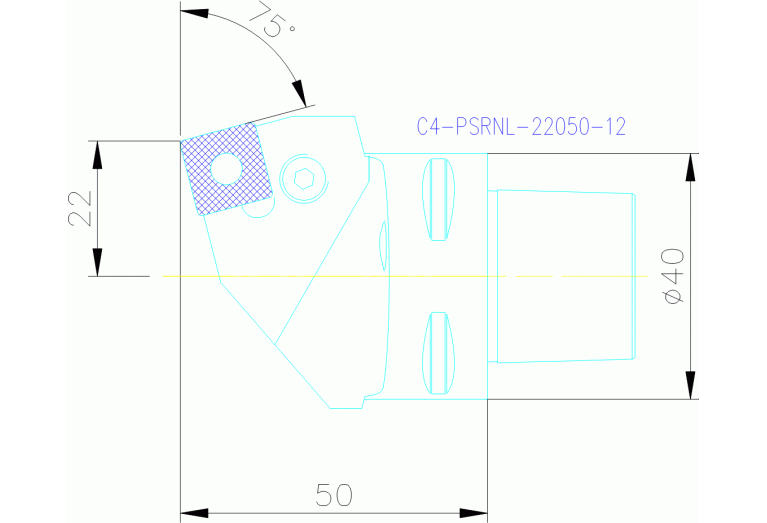

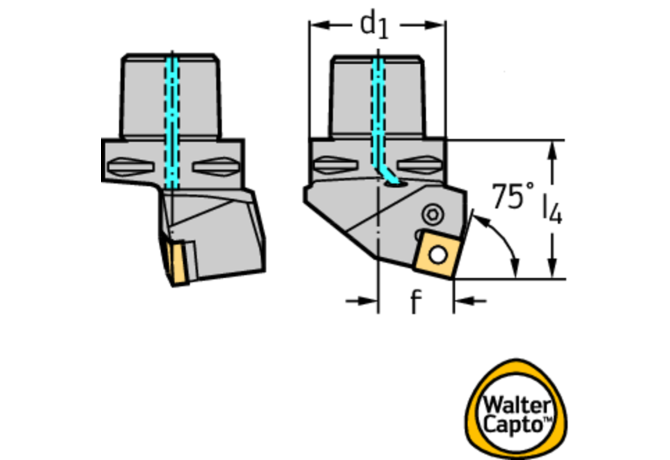

KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-6 Degree
LF Functional length
50 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
74 mm
LTA Length tool assembly
50 mm
MIID Master insert identification
SNMG 12 04 08
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C4-PSRNL-22050-12
OAL Overall length
74 mm
STDNO Standard
ISO26623-1
WF Functional width
22 mm
Working process
DDA - External turning
WT Weight of item
0.4 kg
