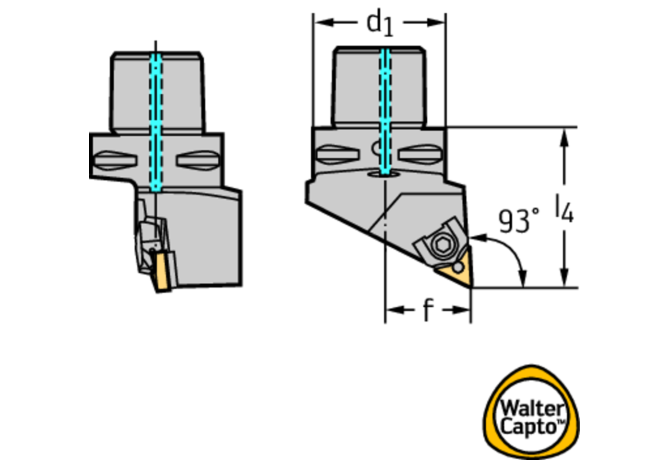

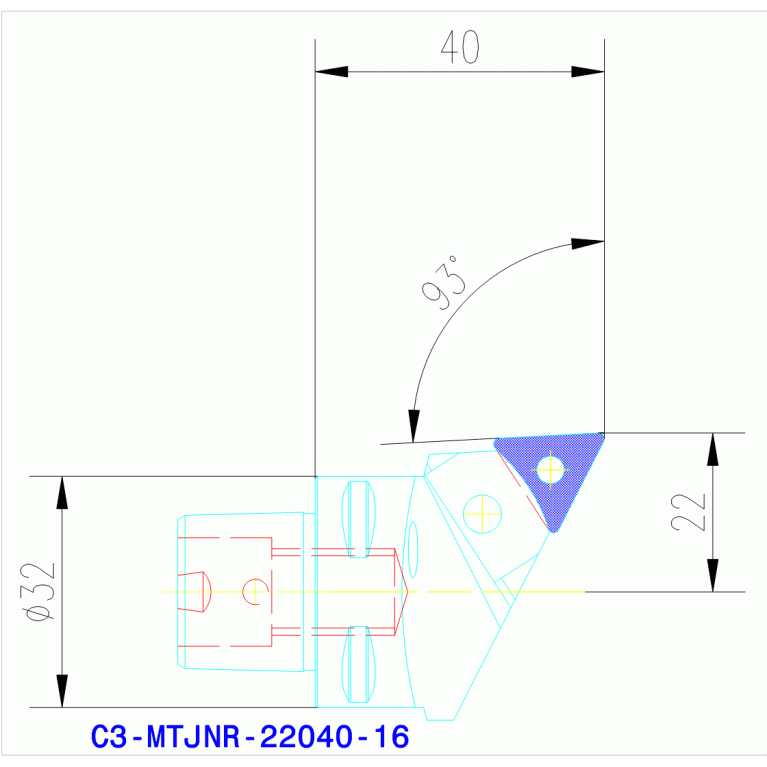

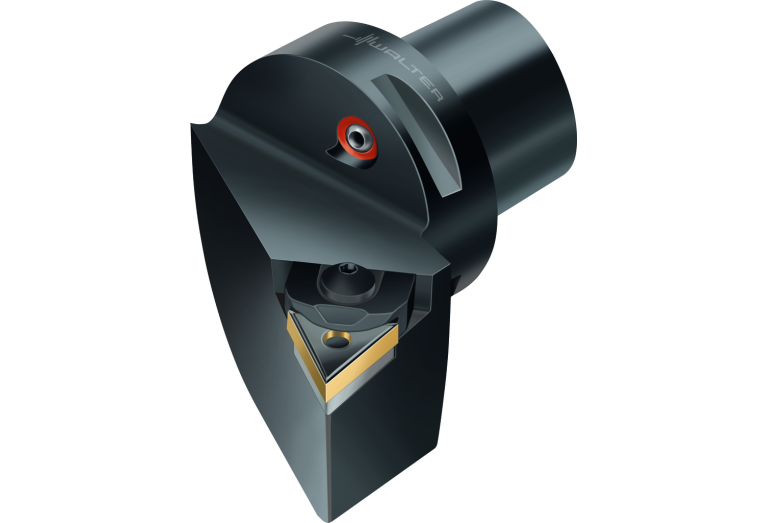

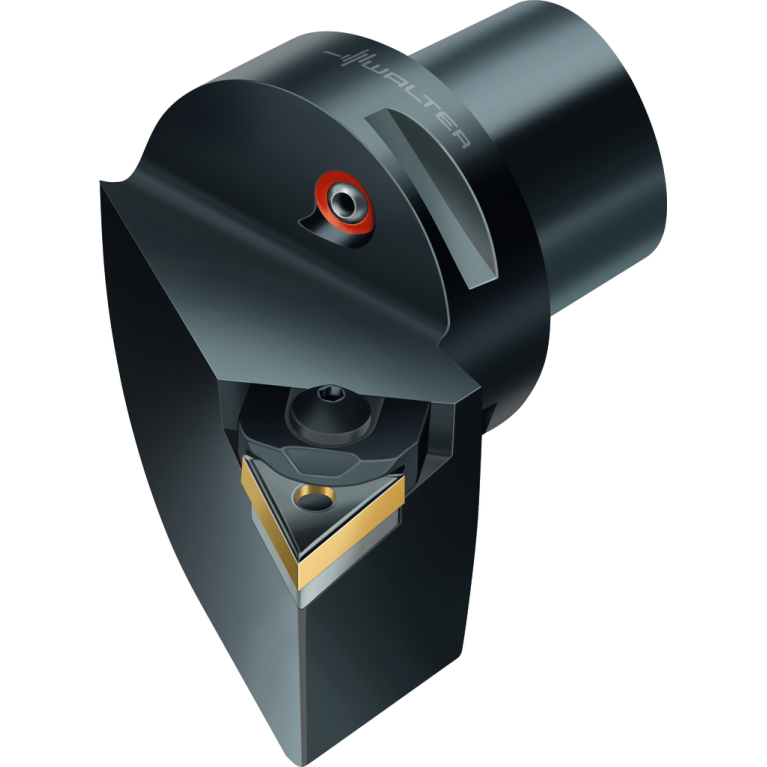

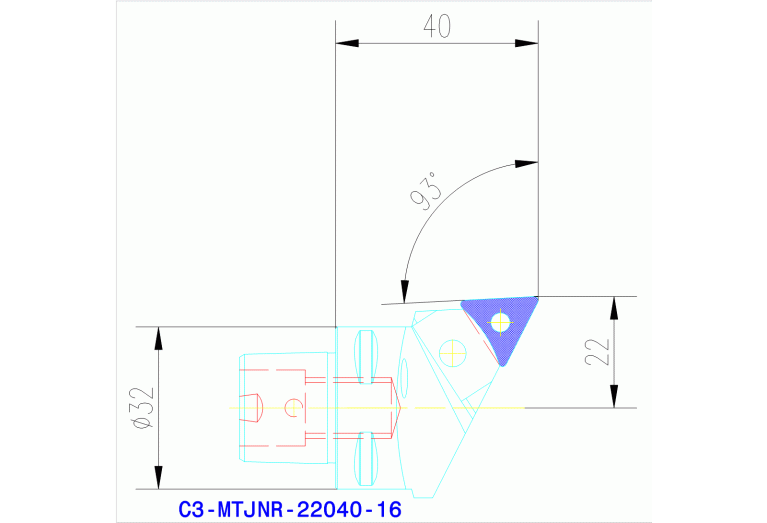

C3-MTJNR-22040-16

Артикул: 5017073

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200195

DIN CSW1

TN160499*N

EPSR Insert included angle

60 Degree

FamilyProducts

Turning tools – Wedge clamping C...-MTJN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

5017073

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0320$$$$

ISO CSW1

ISO$TN160400*******

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

16.5 mm

LAMS Inclination angle

-6 Degree

LF Functional length

40 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 ISO

CCS01C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR Protruding length

59 mm

LTA Length tool assembly

40 mm

MIID Master insert identification

TNMG 16 04 08

MTP Clamping type code

Name Identifying order number

C3-MTJNR-22040-16

OAL Overall length

59 mm

STDNO Standard

ISO26623-1

WF Functional width

22 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.227 kg
