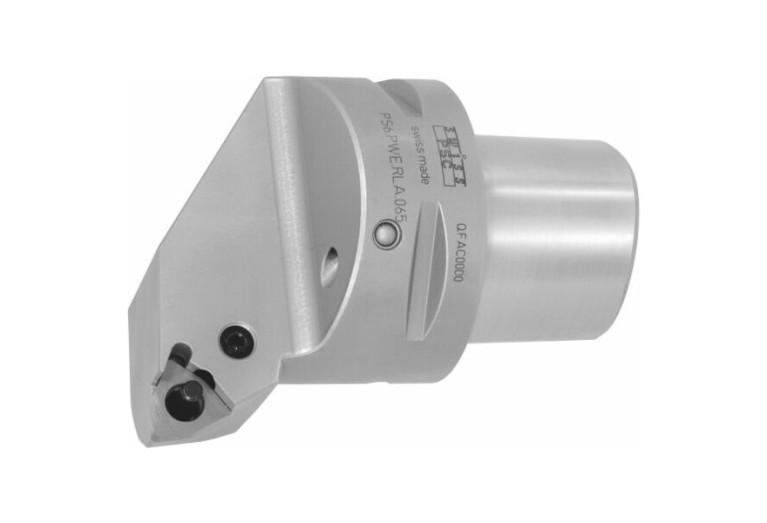

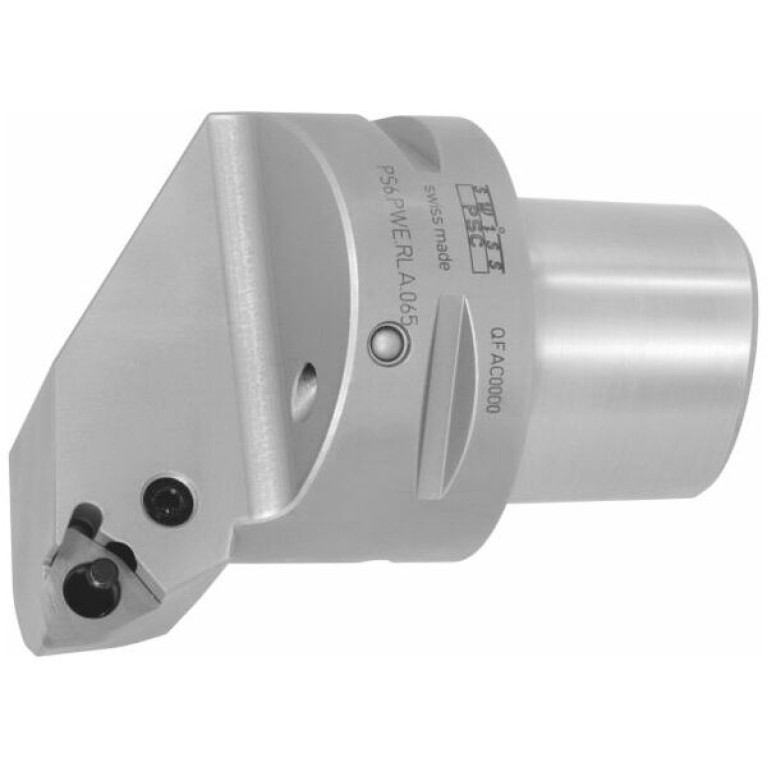

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning 320305 63/08HP

320305 63/08HP

320305 63/08HP 320305 63/08HP 320305 63/08HP

320305 63/08HP

Hoffmann Group
Артикул: 320305 63/08HP
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
CCS06300185
DIN CSW1
WN0804 2N
DMIN Minimum bore diameter
90 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Lever-lock toolholder right-hand
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning

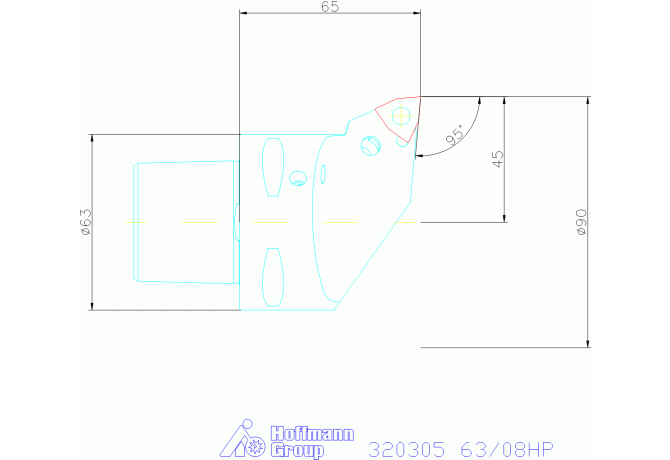

KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
14.53 mm
LAMS Inclination angle
-6 Degree
LF Functional length
65 mm
LFA A dimension on lf
4.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300185
LPR Protruding length
65 mm
LTA Length tool assembly
65 mm
MIID Master insert identification
WNMG0804
Name Identifying order number
320305 63/08HP
OAL Overall length
103 mm
STDDES Standard designation
PWLNR
THSC Tool holder shape code
A - offset shank design
WF Functional width
45 mm
WFA A dimension on wf
0.71 mm
Working process
No working processes available
WT Weight of item
1.352 kg
