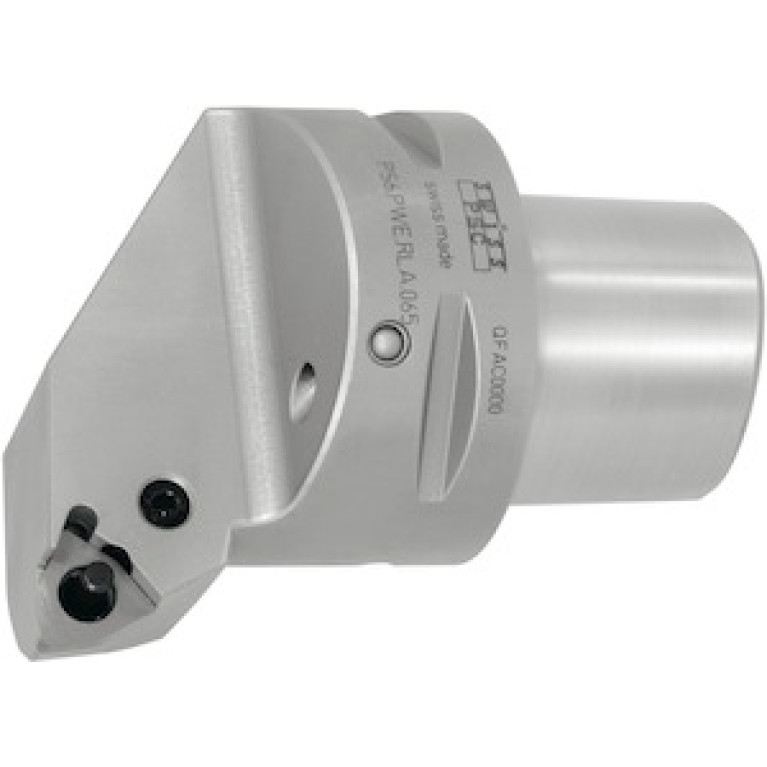

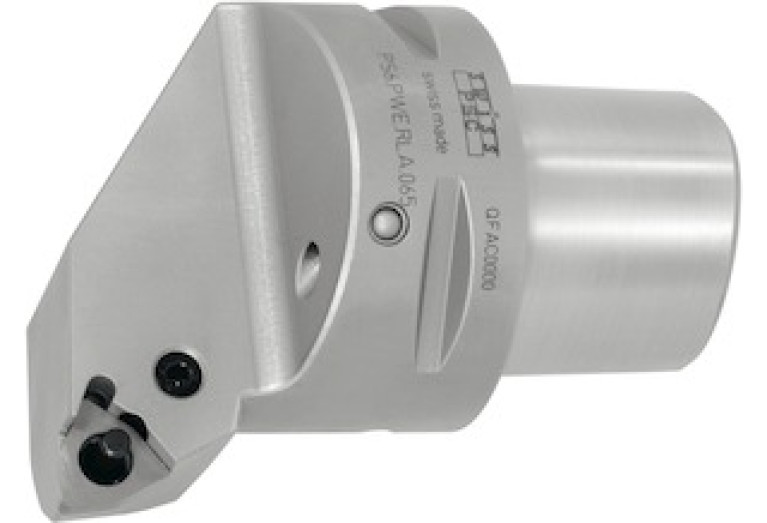

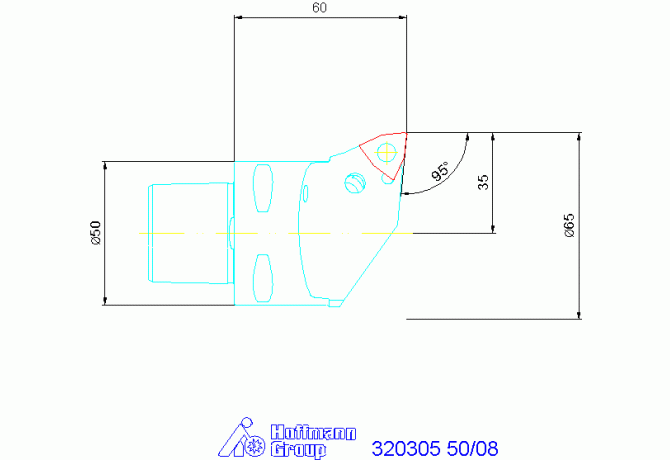

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning 320305 50/08

320305 50/08

320305 50/08 320305 50/08 320305 50/08

320305 50/08

Hoffmann Group
Артикул: 320305 50/08
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
CCS05000195
DIN CSW1
WN0804 2N
DMIN Minimum bore diameter
65 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Lever-lock toolholder right-hand
GAMF Rake angle radial
-8 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-6 Degree
LF Functional length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
60 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
WN..0804..
Name Identifying order number
320305 50/08
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.789 kg
