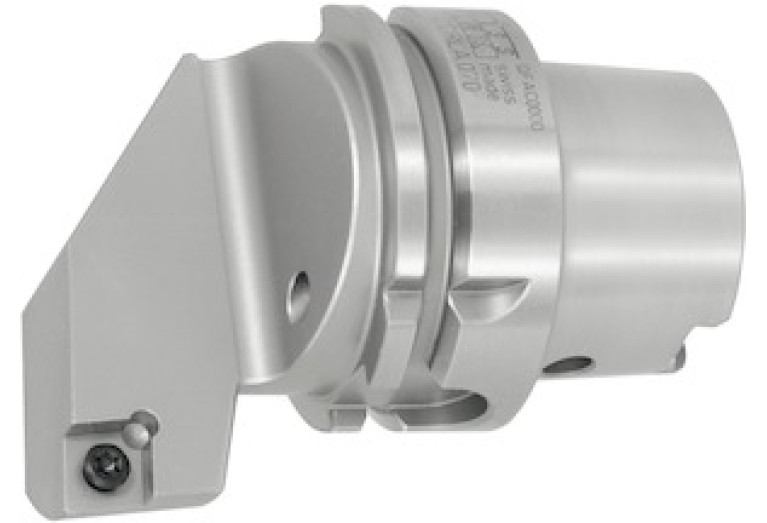

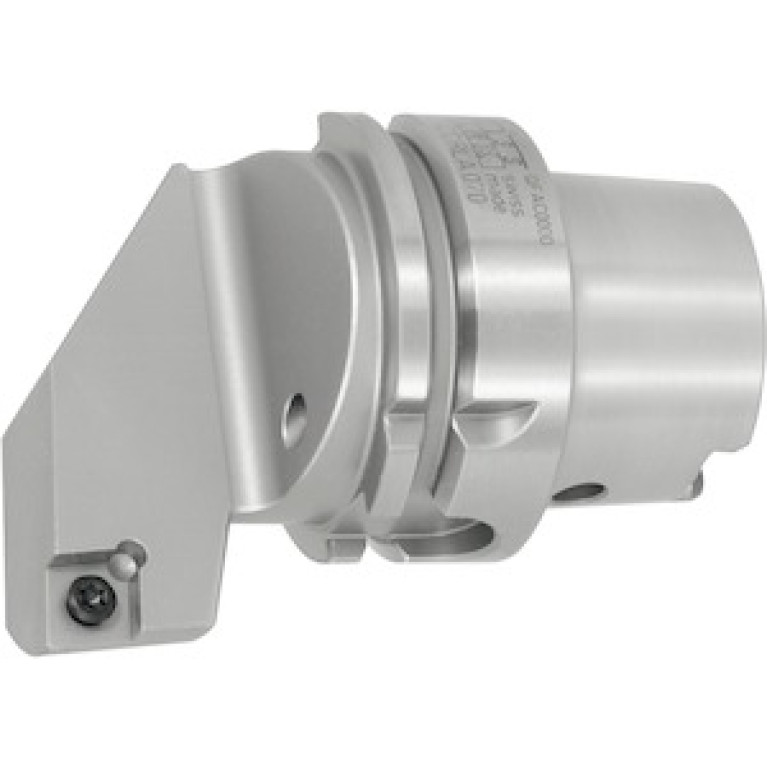

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning 320010 40/12

320010 40/12

320010 40/12 320010 40/12 320010 40/12

320010 40/12

Hoffmann Group
Артикул: 320010 40/12
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK04000795
DIN CSW1
CC1204 3N
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Screw-on toolholder right-hand
GAMF Rake angle radial
-2 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning

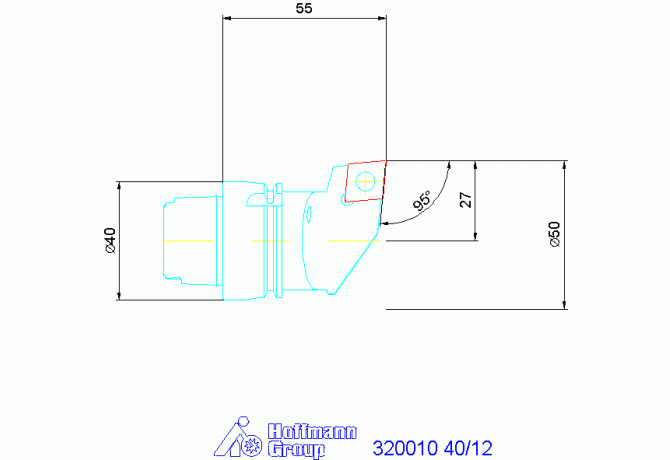

KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
0 Degree
LF Functional length
55 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000795
LPR Protruding length
55 mm
LTA Length tool assembly
55 mm
MIID Master insert identification
CC..1204..
Name Identifying order number
320010 40/12
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.345 kg
