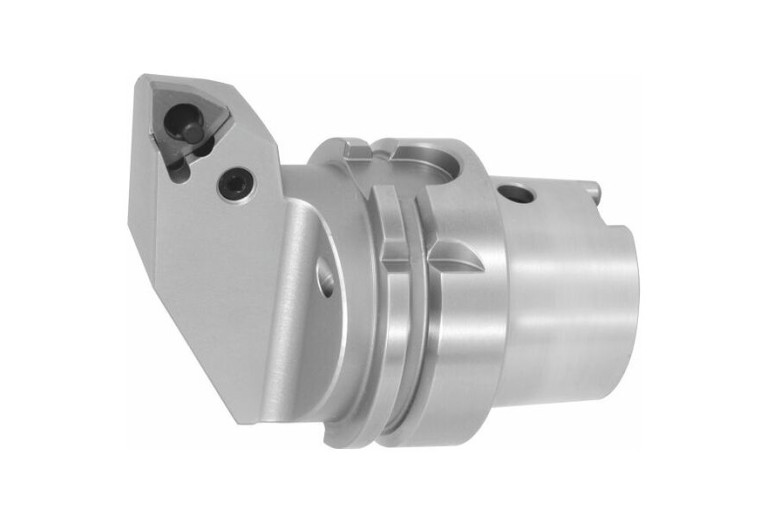

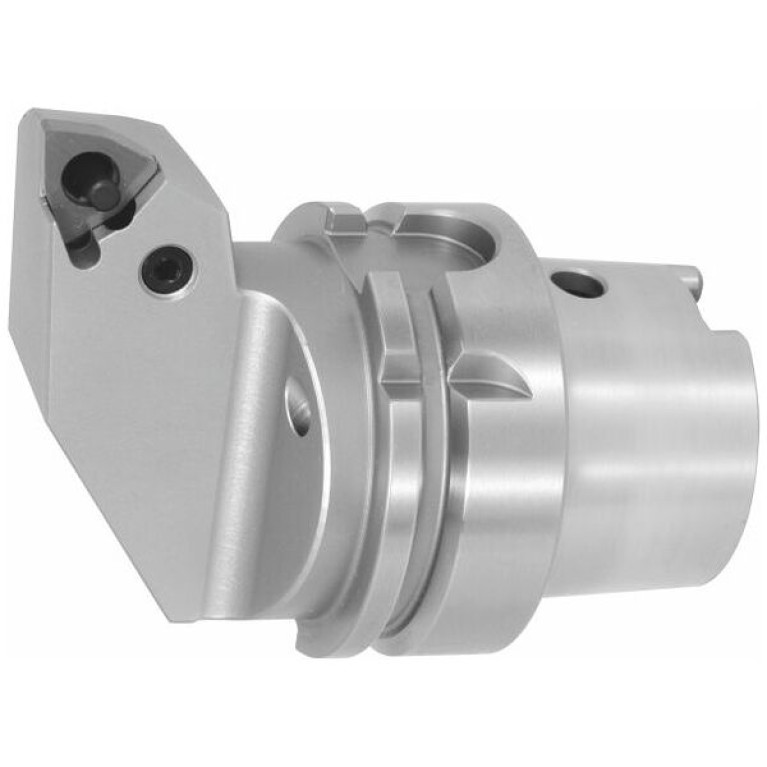

Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning 320006 63/08HP

320006 63/08HP

320006 63/08HP 320006 63/08HP 320006 63/08HP

320006 63/08HP

Hoffmann Group
Артикул: 320006 63/08HP
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK06300785
DMIN Minimum bore diameter
80 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Lever-lock toolholder left-hand
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
309-07 - System tool for external turning
L Cutting edge length
8.21 mm
LAMS Inclination angle
-6 Degree

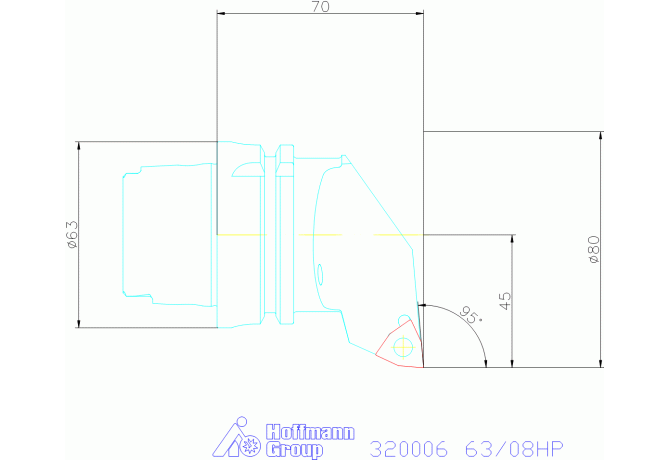

LF Functional length
70 mm
LFA A dimension on lf
0.28 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300785
LPR Protruding length
70 mm
LTA Length tool assembly
70 mm
MIID Master insert identification
WNMG0804
Name Identifying order number
320006 63/08HP
OAL Overall length
101.9 mm
STDDES Standard designation
PWLNL
THSC Tool holder shape code
A - offset shank design
WF Functional width
45 mm
WFA A dimension on wf
2.18 mm
Working process
No working processes available
WT Weight of item
1.16 kg
