Главная Каталог продукции Toolunited 14 309-07 - System tool for external turning 1.11650L310

1.11650L310

1.11650L310 1.11650L310

1.11650L310

Kennametal
Артикул: 1.11650L310
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL05002205
DMIN Minimum bore diameter
60 mm
EPSR Insert included angle
56 Degree
FamilyProducts
BORING HEAD FIXPERFECT 1.1
GAMO Rake angle orthogonal
10 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
309-07 - System tool for external turning

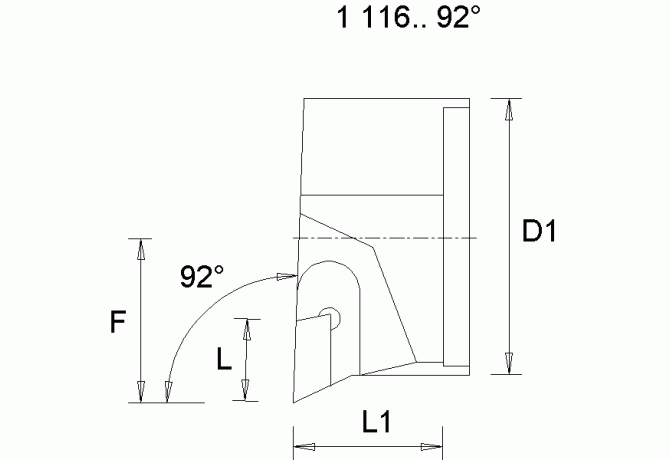

KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
14.5 mm
LAMS Inclination angle
8 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05002205
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.11650L310
OAL Overall length
30 mm
WF Functional width
27 mm
WFA A dimension on wf
60 mm
Working process
No working processes available
