Главная Каталог продукции Toolunited 14 309-02 - Turning tool for external threading TLHR3225P10

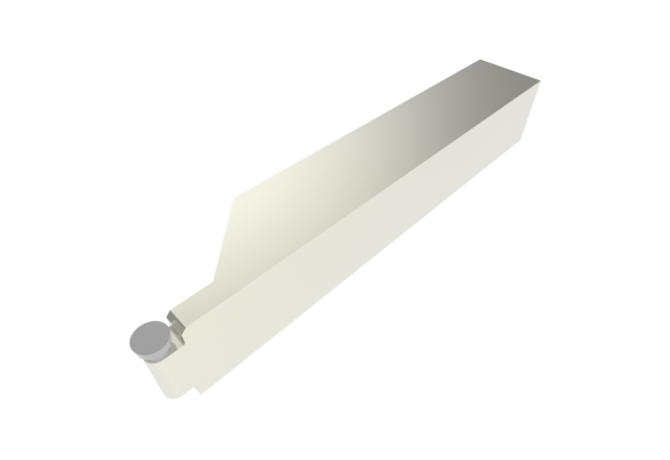

TLHR3225P10

TLHR3225P10 TLHR3225P10 TLHR3225P10

TLHR3225P10

Mitsubishi Materials
Артикул: TLHR3225P10
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
VKT32250105
DIN CSW1
MI-RTG10A
FamilyProducts
For ISO Insert
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
N - Neutral

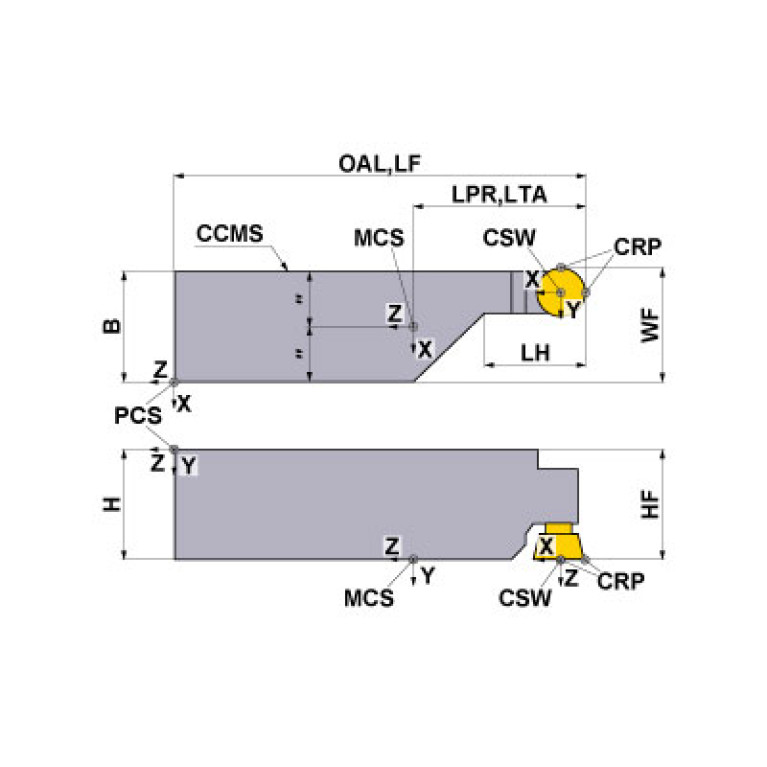

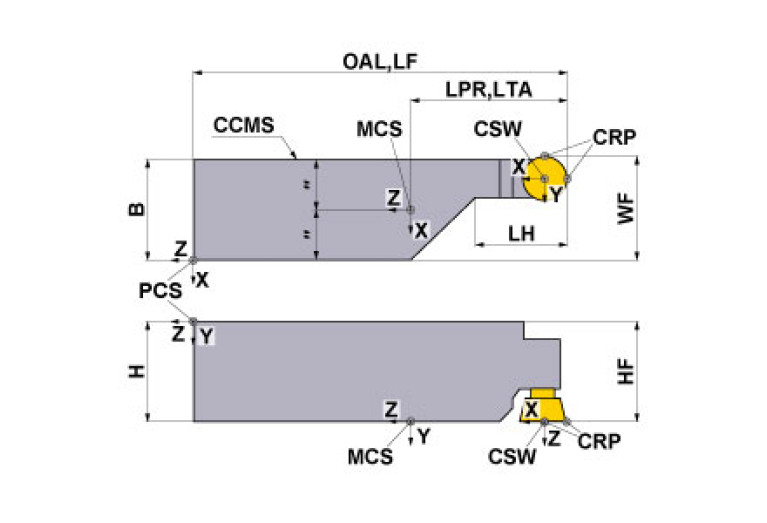

HF Functional height
32 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-02 - Turning tool for external threading
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
0 Degree
LF Functional length
170 mm
LH Head length
25 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3225
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32250105
MIID Master insert identification
MI-RTG10A
Name Identifying order number
TLHR3225P10
OAL Overall length
170 mm
SX Shank cross section shape code
02 - Square shank
Working process
DDA - External turning,DFA - External form turning
