Главная Каталог продукции Toolunited 14 309-02 - Turning tool for external threading NTS-SER1212-16

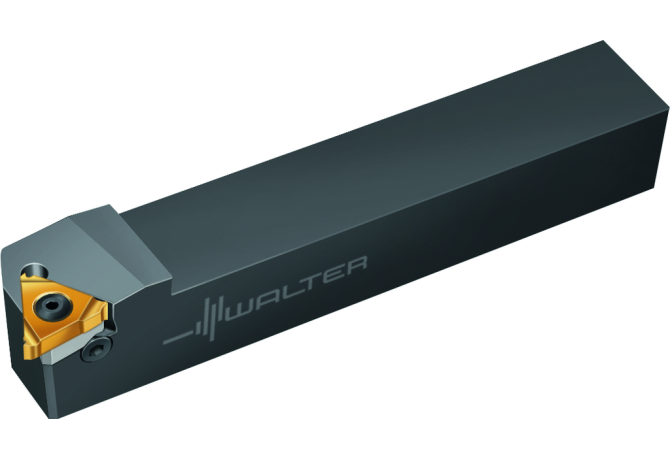

NTS-SER1212-16

NTS-SER1212-16 NTS-SER1212-16 NTS-SER1212-16

NTS-SER1212-16

Walter
Артикул: 5011561
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHD Drop head design
0 - Normal
DIN
VKT12120105
DIN CSW1
W-NTSE16**3R*****
FamilyProducts
Shank tool – External thread NTS-SE
HAND Cutting direction
R - Right
HF Functional height
12 mm
ID Technical product number
5011561
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A1212$$$$
ISO CSW1
WR$$NTSE16**3R*****
ISYC Subclass
309-02 - Turning tool for external threading
KAPR Tool cutting edge angle
90 Degree

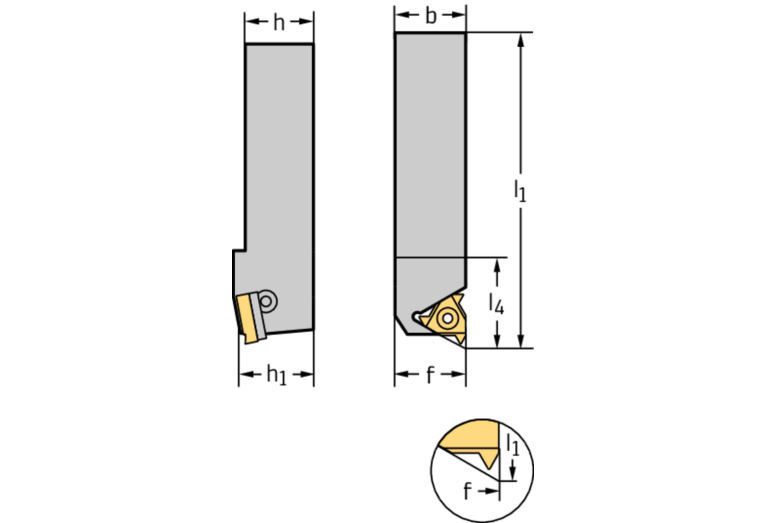

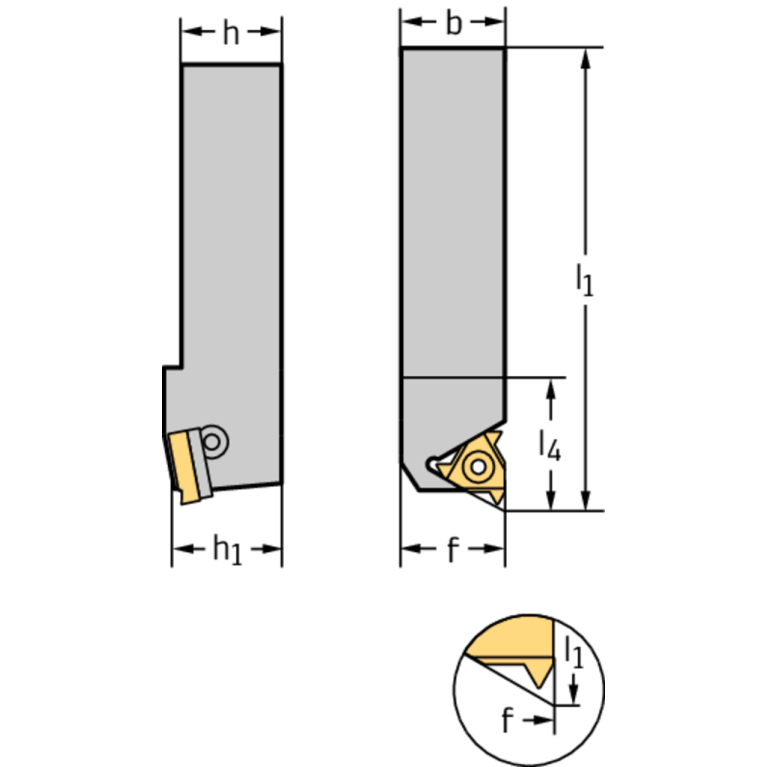

LF Functional length
83.2 mm
LH Head length
22 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1212
LOC-03 H Shank height
12 mm
LOC-03 ISO
VKT01A1212$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120105
LPR Protruding length
83.2 mm
MIID Master insert identification
NTS-E-16
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
NTS-SER1212-16
OAL Overall length
83.2 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
16 mm
Working process
DGA - Thread turning, external
WT Weight of item
0.127 kg
