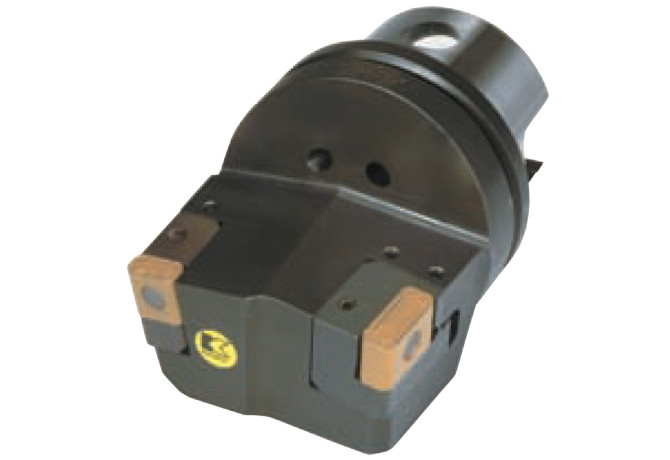

Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified TK01339D

TK01339D

Артикул: 1781756

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2008

DIN

CCS06300195

DIN CSW1

KH-WLFNCA

FamilyProducts

Basic shank for Wheelset turning

ID Technical product number

1781756

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LOC-01 BI Block index

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

KH-WLFNCA

LOC-02 BI Block index

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

KH-WLLNCA

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

Name Identifying order number

TK01339D

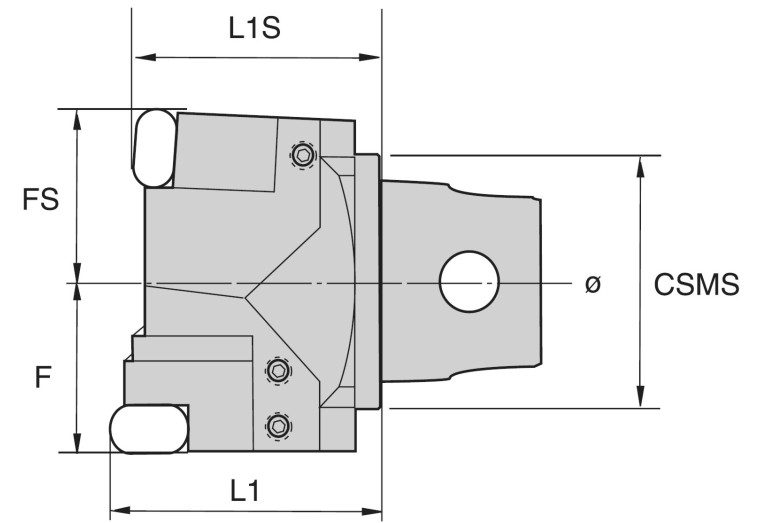

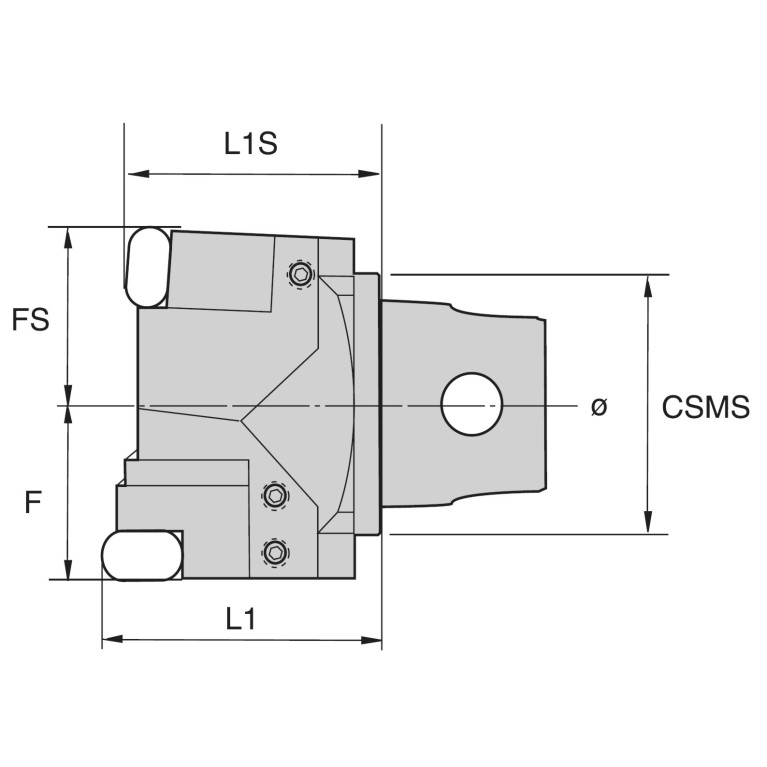

OAL Overall length

66 mm

WFA A dimension on wf

6 mm

Working process

No working processes available

Номер таблицы (BI) / Block index (BI)
