Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified SBH1050R

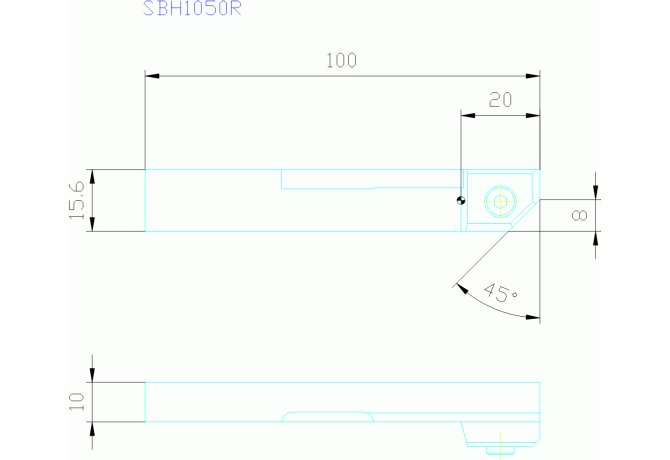

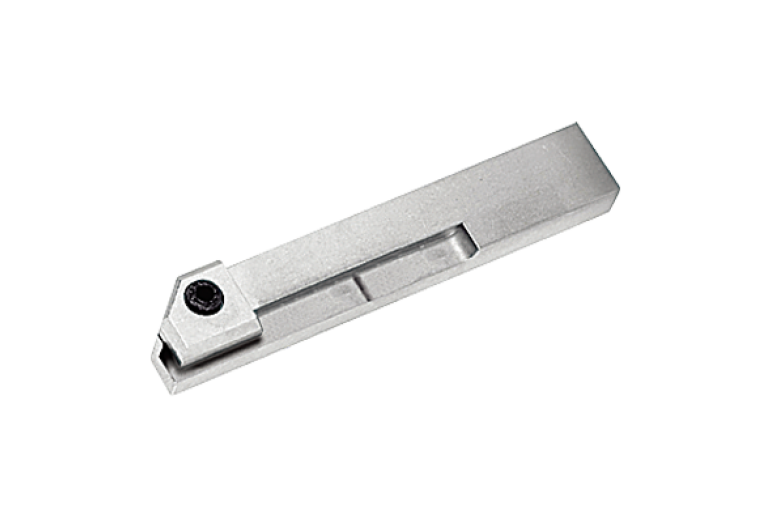

SBH1050R

Артикул: 297852

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

4/1/2022

DIN

VKT10150105

FamilyProducts

spare parts

ID Technical product number

297852

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LH Head length

20 mm

LOC-01 BI Block index

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-03 B Shank width

15 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1015

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10150105

Name Identifying order number

SBH1050R

SX Shank cross section shape code

02 - Square shank

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available

Номер таблицы (BI) / Block index (BI)
