Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified SBAHR1022

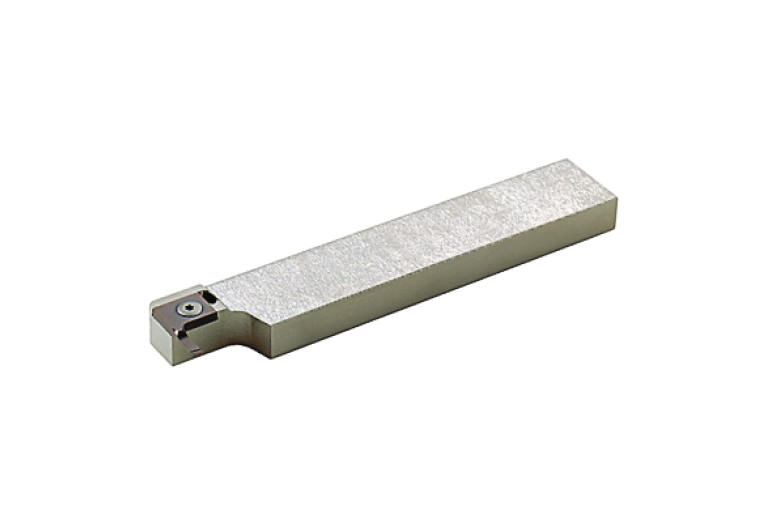

SBAHR1022

SBAHR1022 SBAHR1022 SBAHR1022

SBAHR1022

Mitsubishi Materials
Артикул: 274095
В наличии
В корзину
Описание
Характеристики

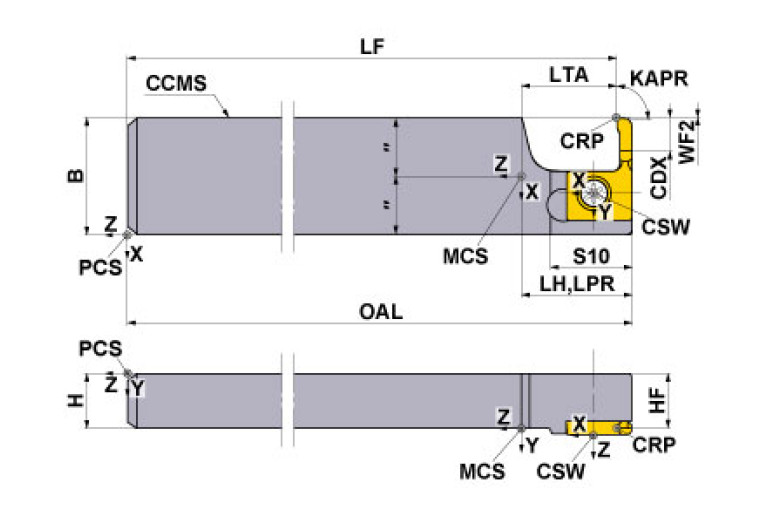

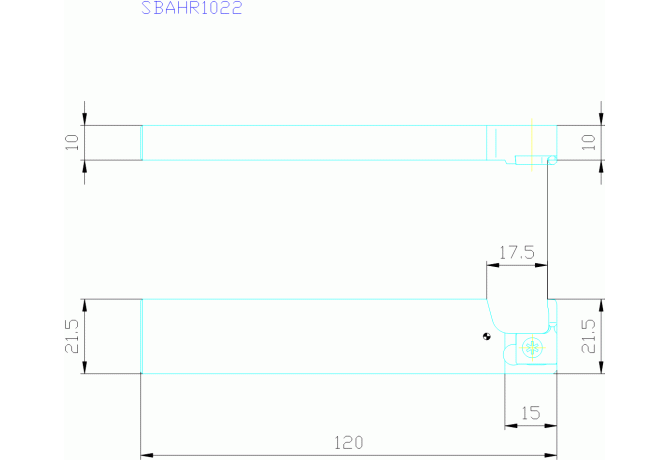

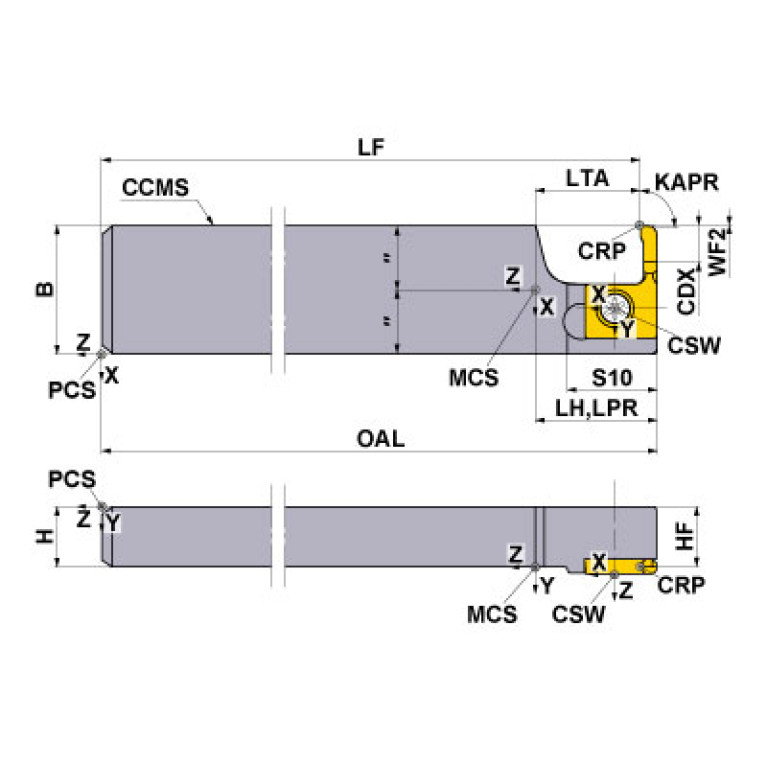

A2A SKJ Stechbreite Nennmaß Schneidkörper Pos.A
1.25 mm
BLDA SKJ Tool style code Position A
0
C5A SKJ Eckenradius rechts Schneidkörper Pos.A
0 mm
CDX Cutting depth maximum
8 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
4/1/2022
DIN
VKT10210105
DMIN Minimum bore diameter
3 mm
FamilyProducts
grooving,small tools
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
2.5 mm
HAND Cutting direction
R - Right
HF Functional height
10 mm
ID Technical product number
274095
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-00 - Tool holder for indexable inserts unspecified
LF Functional length
120 mm
LH Head length
17.5 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SBAT308000L
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-03 B Shank width
21 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1021
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10210105
LPR Protruding length
17.5 mm
LTA Length tool assembly
120 mm
MIID Master insert identification
SBAT308000L
Name Identifying order number
SBAHR1022
OAL Overall length
120 mm
SX Shank cross section shape code
02 - Square shank
THSC Tool holder shape code
G - straight shank design
Working process
No working processes available
Номер таблицы (BI) / Block index (BI)
1
