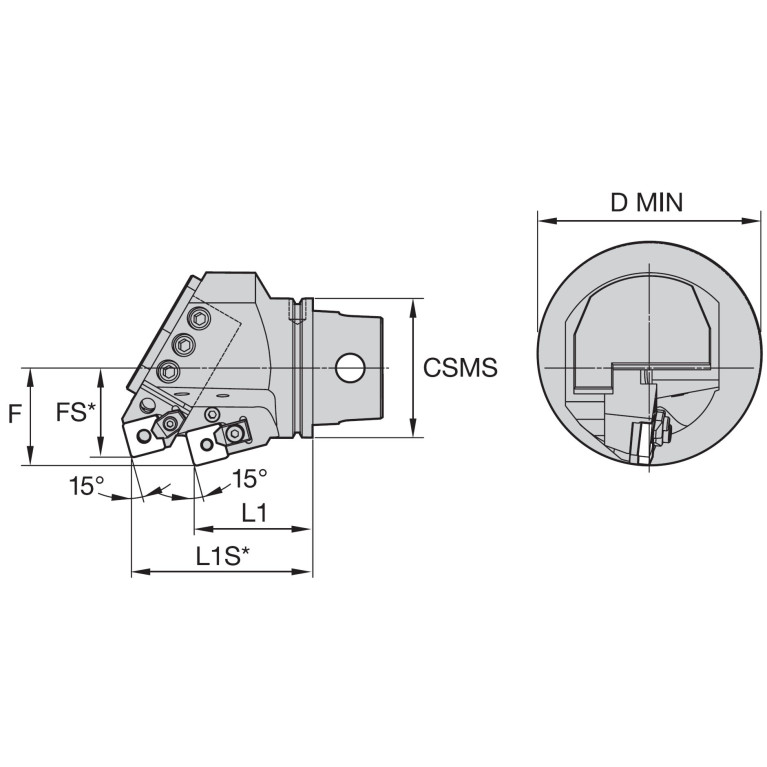

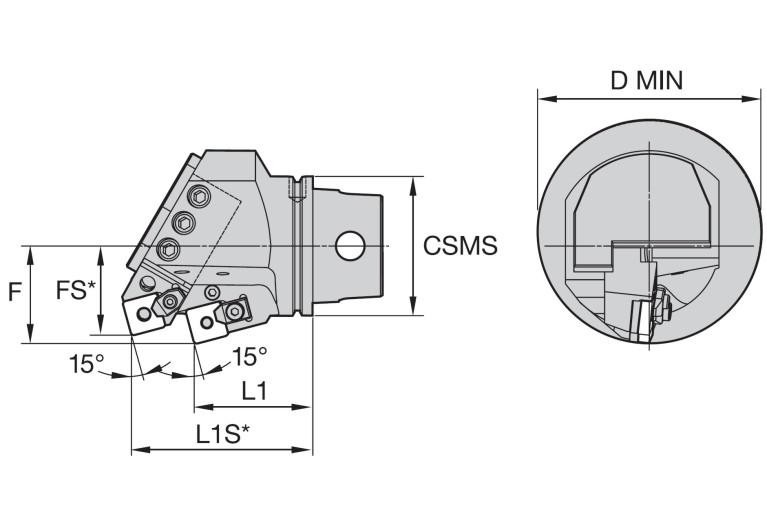

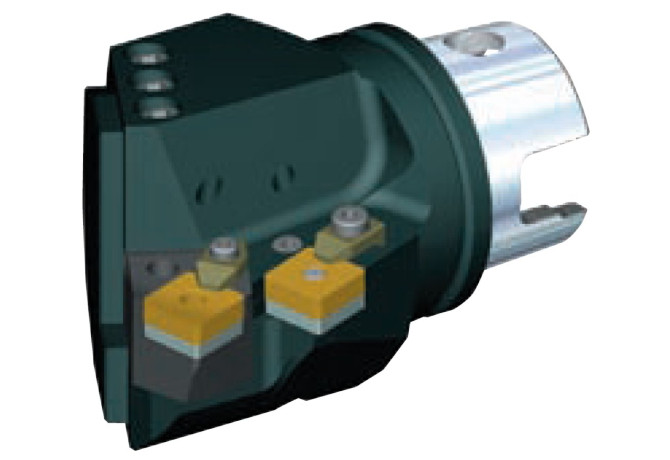

Главная Каталог продукции СЗЦПК инструмент 14 309-00 - Tool holder for indexable inserts unspecified KM100-TK00055D

KM100-TK00055D

Артикул: 1152381

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

64 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2008

DIN

CCS10000195

DIN CSW1

SN2507 2N

DMIN Minimum bore diameter

160 mm

FamilyProducts

KM - PSDN 95° (with Adjustable Cartridge)

ID Technical product number

1152381

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

KAPR Tool cutting edge angle

15 Degree

LF Functional length

64 mm

LOC-01 BI Block index

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SN2507 2N

LOC-02 BI Block index

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

KH-J6r PSDNN3240X25

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS10000195

LTA Length tool assembly

64 mm

Name Identifying order number

KM100-TK00055D

OAL Overall length

130 mm

WF Functional width

70 mm

Working process

No working processes available

Номер таблицы (BI) / Block index (BI)
