Главная Каталог продукции СЗЦПК инструмент 14 309-00 - Tool holder for indexable inserts unspecified H63TH-DDJNL-L15-3

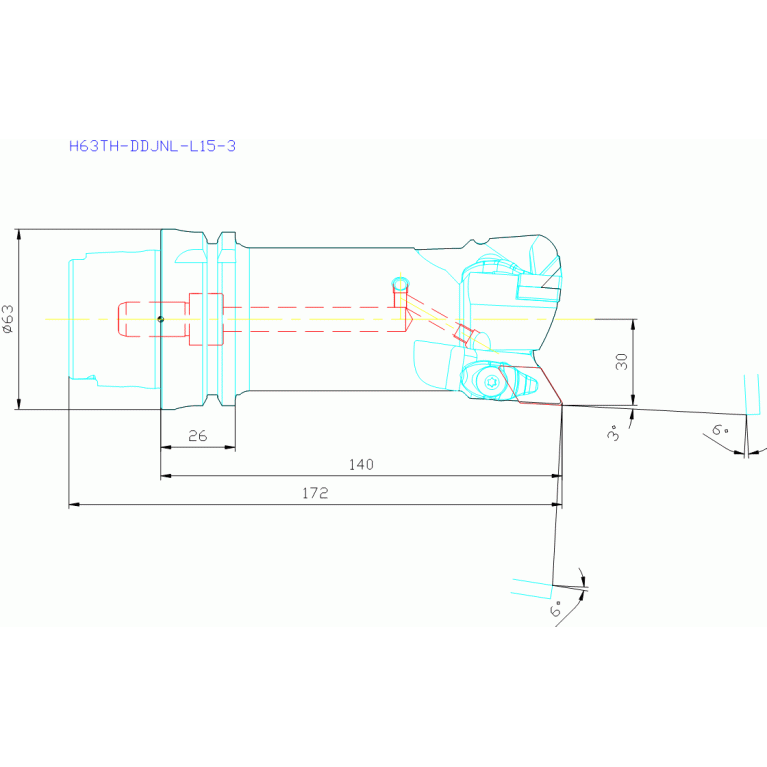

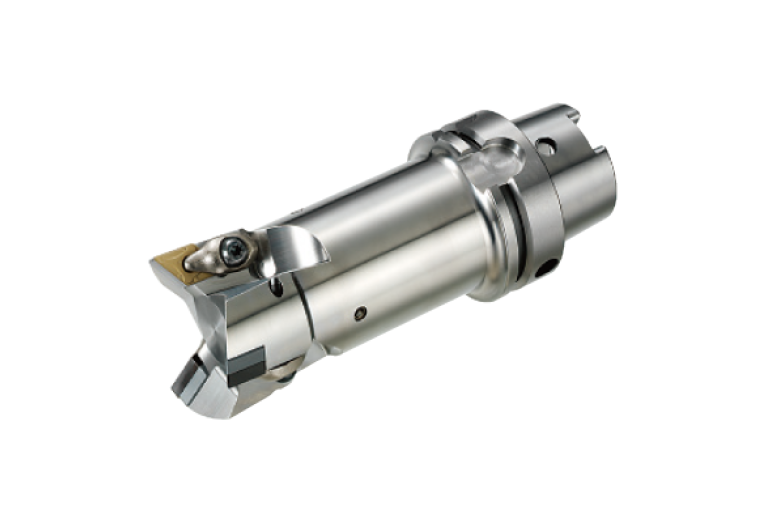

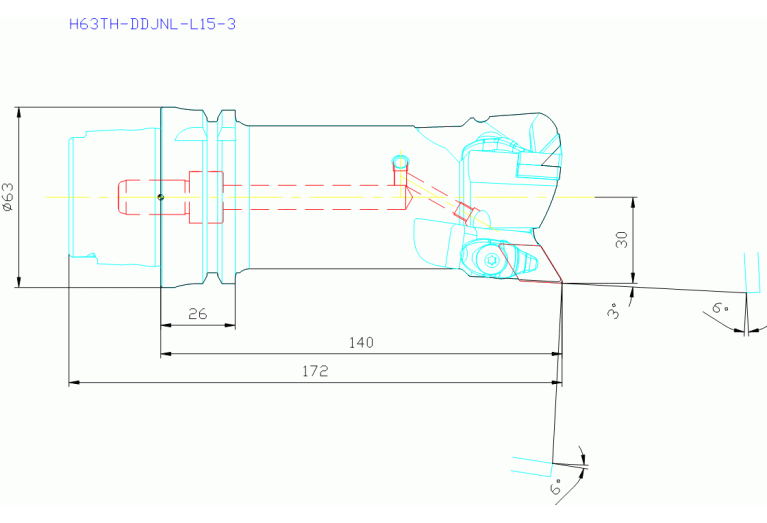

H63TH-DDJNL-L15-3

Артикул: 436550

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

D1A Corner radius Pos. A

1.2 mm

Delivery state valid from

4/1/2022

DIN

HSK06300785

DIN CSW1

MI-DN1504 2L

FamilyProducts

hsk-t tools

HAND Cutting direction

L - Left

ID Technical product number

436550

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

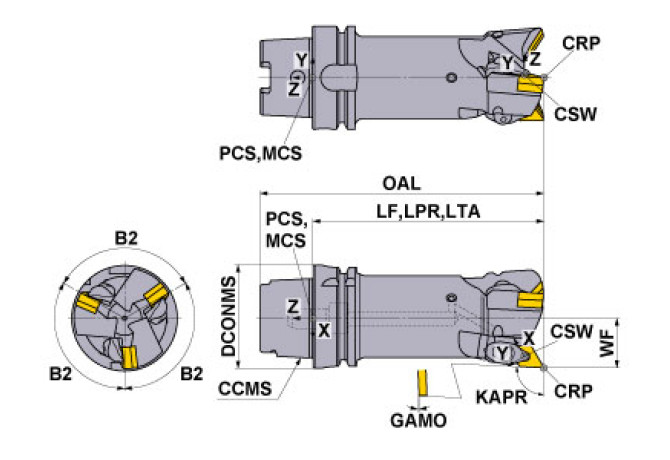

KAPR Tool cutting edge angle

93 Degree

LF Functional length

140 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

DN1504 7N

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

MI-DN1504 2L

LOC-02 BI Block index

LOC-02 MIID Master insert identification

DN1504 7N

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

MI-DN1504 2N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300785

LTA Length tool assembly

140 mm

MIID Master insert identification

DN1504 7N

Name Identifying order number

H63TH-DDJNL-L15-3

OAL Overall length

140 mm

WF Functional width

30 mm

Working process

No working processes available

WT Weight of item

2.2 kg

Номер таблицы (BI) / Block index (BI)
