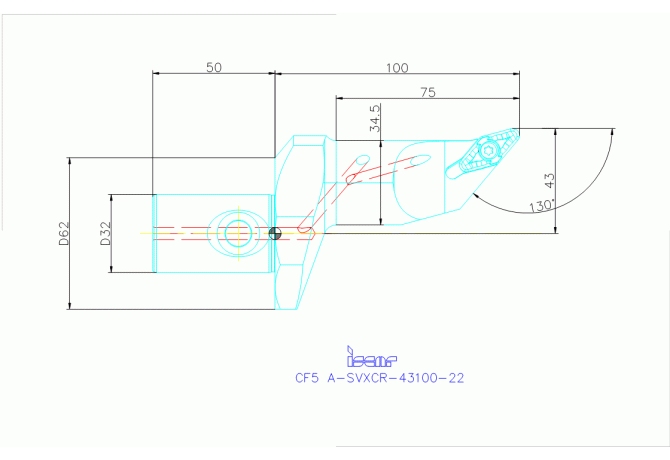

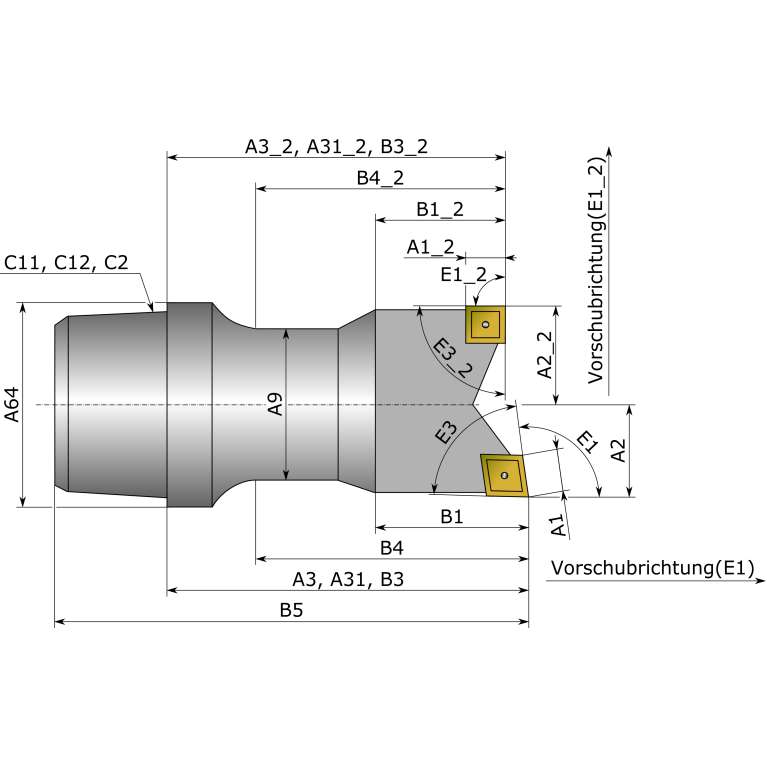

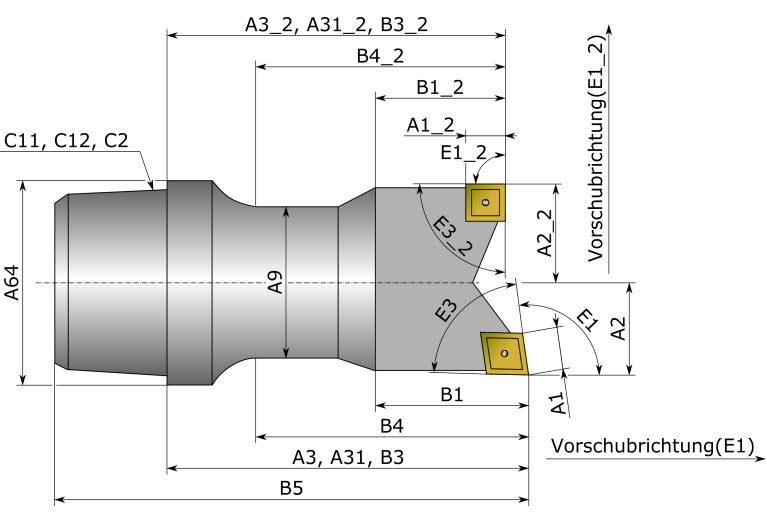

CF5 A-SVXCR-43100-22

Артикул: 3602901

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ICF00500195

DIN CSW1

VC1604023N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

35 Degree

FamilyProducts

CF5 A-SVXCR-43100-22

HAND Cutting direction

R - Right

ID Technical product number

3602901

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LH Head length

75 mm

LOC-01 BI Block index

LOC-01 EPSR Insert included angle

35 Degree

LOC-01 MIID Master insert identification

VCGT 160402

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

VC1604023N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ICF Iscar ClickFit

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ICF00500195

MIID Master insert identification

VCGT 160402

Name Identifying order number

CF5 A-SVXCR-43100-22

OAL Overall length

100 mm

Working process

No working processes available
