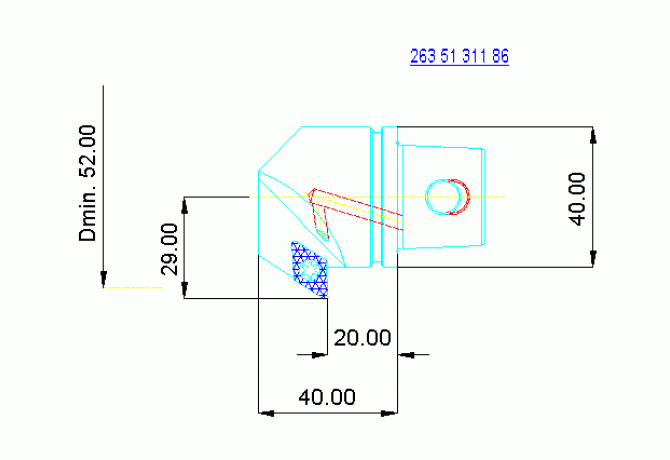

Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified 12635131186

12635131186

12635131186

Widia

Артикул: 12635131186

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

WI - Widia

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

198.6 €

DHD Drop head design

2 - Normal and overhead

DIN

UTS04000195

DIN CSW1

DC11T3 3N

DMIN Minimum bore diameter

52 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Cutting head for internal turning

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

12635131186

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LAMS Inclination angle

0 Degree

LOC-01 BI Block index

1

LOC-01 EPSR Insert included angle

55 Degree

LOC-01 L Cutting edge length

11.6 mm

LOC-01 MTP Clamping type code 1st step

S Screwed on across the bore, with counter bore

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

DC11T3 3N

LOC-02 BI Block index

2

LOC-02 EPSR Insert included angle

55 Degree

LOC-02 L Cutting edge length

11.6 mm

LOC-02 MTP Clamping type code 1st step

S Screwed on across the bore, with counter bore

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

DP11T3 3N

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

UTS Widaflex connection WIDIA

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

UTS04000195

MTP Clamping type code

S - Screwed across bore with, counter bore

MTP Clamping type code 1st step

S

Name Identifying order number

12635131186

OAL Overall length

40 mm

STDDES Standard designation

A40B-SDXCL11

SX Shank cross section shape code

10 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

29 mm

WFA A dimension on wf

20 mm

Working process

DDB - External and internal turning

Номер таблицы (BI) / Block index (BI)

1
