Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified 12191061900

12191061900

12191061900

Widia

Артикул: 12191061900

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BI Block index

1

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

65.5 €

DHD Drop head design

2 - Normal and overhead

DIN

VKT20100105

DIN CSW1

TP1103 1N

EPSR Insert included angle

60 Degree

FamilyProducts

Tool holder with square-shank for inserts

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

3 Degree

HAND Cutting direction

N - Neutral

HF Functional height

20 mm

ID Technical product number

12191061900

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

10.4 mm

LAMS Inclination angle

0 Degree

LH Head length

21 mm

LOC-01 BI Block index

1

LOC-01 EPSR Insert included angle

60 Degree

LOC-01 L Cutting edge length

10.4 mm

LOC-01 MTP Clamping type code 1st step

C Top clamping, without bore

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

TP1103 1N

LOC-03 B Shank width

9.5 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20100105

MTP Clamping type code

C - Top clamping without bore

MTP Clamping type code 1st step

C

Name Identifying order number

12191061900

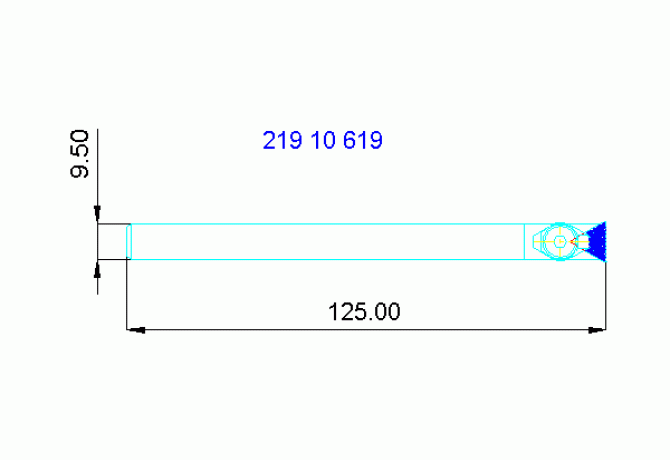

OAL Overall length

125 mm

SX Shank cross section shape code

02 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

10.2 mm

Working process

DDA - External turning
