Главная Каталог продукции Toolunited 14 309-00 - Tool holder for indexable inserts unspecified 12157200200

12157200200

12157200200

Widia

Артикул: 12157200200

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BI Block index

1

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

64.4 €

DHD Drop head design

2 - Normal and overhead

DIN

VKT12120105

DIN CSW1

CC09T3 3N

EPSR Insert included angle

80 Degree

FamilyProducts

Holder for turning inside with square-shank

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

9 mm

ID Technical product number

12157200200

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

KAPR Tool cutting edge angle

53 Degree

L Cutting edge length

9.65 mm

LAMS Inclination angle

0 Degree

LOC-01 BI Block index

1

LOC-01 EPSR Insert included angle

80 Degree

LOC-01 L Cutting edge length

9.65 mm

LOC-01 MTP Clamping type code 1st step

S Screwed on across the bore, with counter bore

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CC09T3 3N

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

MTP Clamping type code

S - Screwed across bore with, counter bore

MTP Clamping type code 1st step

S

Name Identifying order number

12157200200

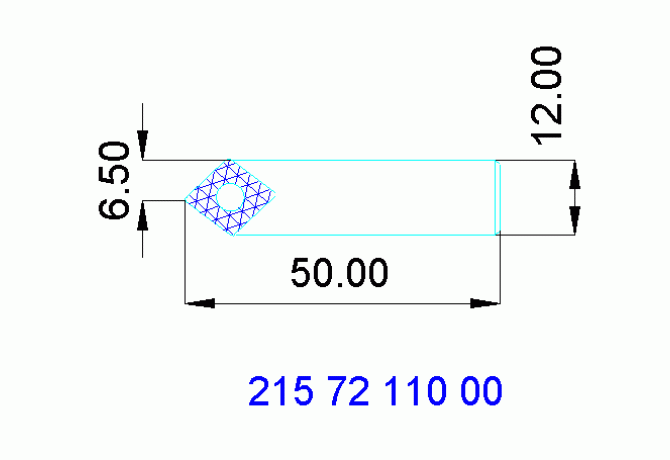

OAL Overall length

50 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

6.5 mm

Working process

DDI - Internal turning
