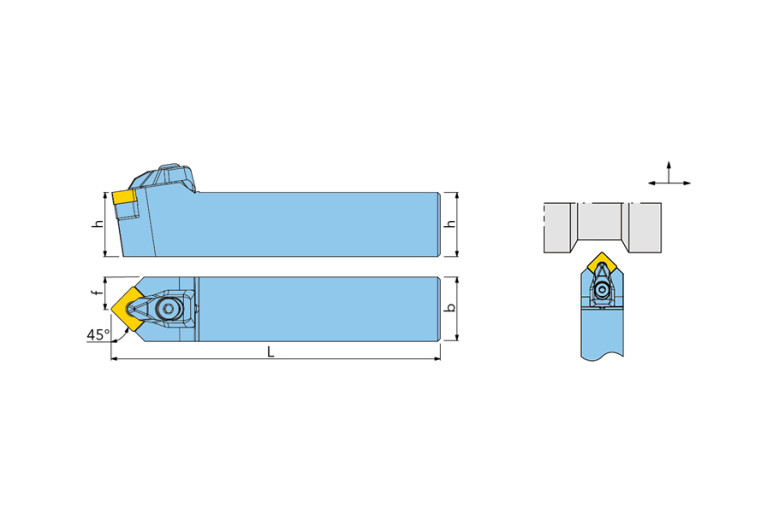

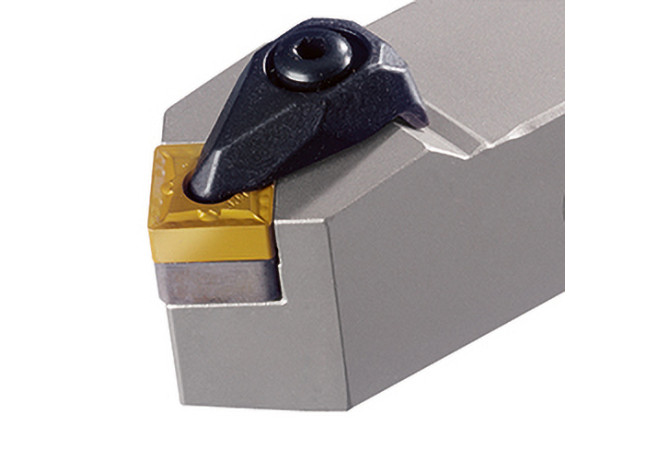

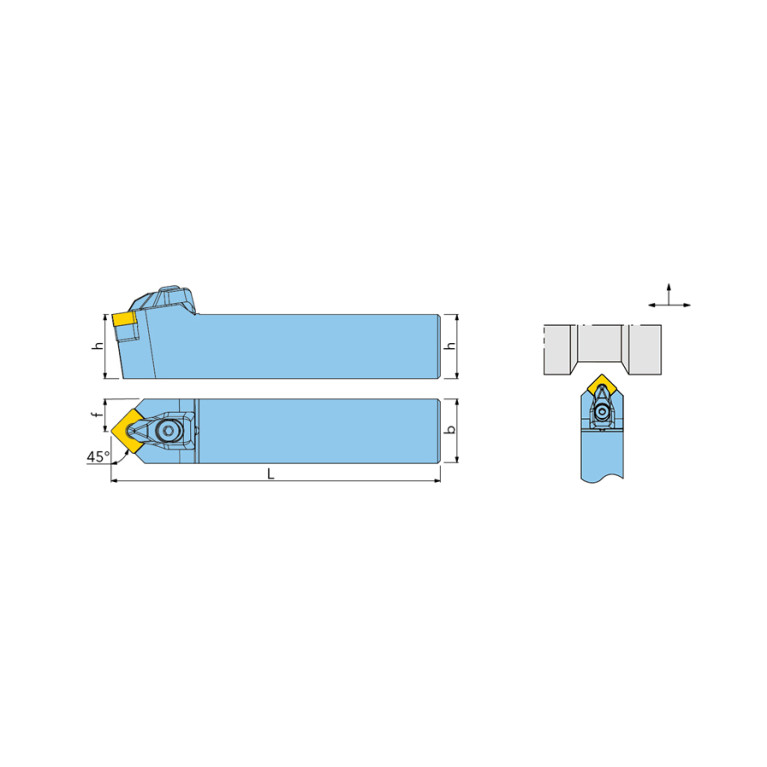

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning TSDNN 3232 P19

TSDNN 3232 P19

TSDNN 3232 P19 TSDNN 3232 P19 TSDNN 3232 P19 TSDNN 3232 P19

TSDNN 3232 P19

Ingersoll
Артикул: 3602573
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT32320105
DIN CSW1
SN1906042N
EPSR Insert included angle
90 Degree
FamilyProducts
TSDNN
HAND Cutting direction
N - Neutral
ID Technical product number
3602573
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree

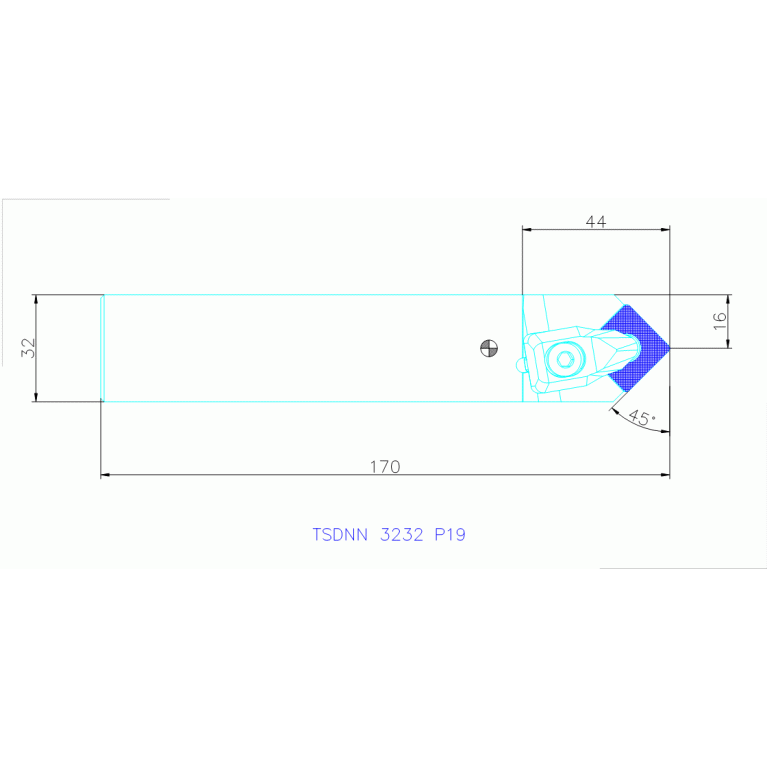

LF Functional length
170 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
MIID Master insert identification
SN 1906
Name Identifying order number
TSDNN 3232 P19
OAL Overall length
170 mm
STDDES Standard designation
TSDNN 3232 P19
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
16 mm
Working process
No working processes available
WT Weight of item
1.3 kg
