Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning TRGNL 3225 P1207-F

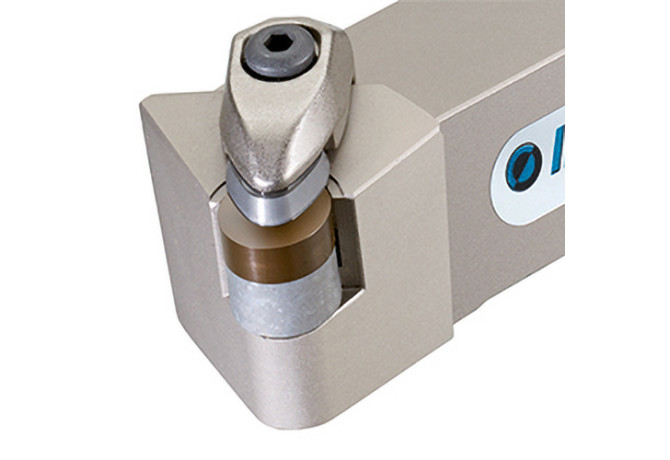

TRGNL 3225 P1207-F

TRGNL 3225 P1207-F TRGNL 3225 P1207-F TRGNL 3225 P1207-F TRGNL 3225 P1207-F

TRGNL 3225 P1207-F

Ingersoll
Артикул: 6123176
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
10
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
VKT32250105
DIN CSW1
RN1207001N
FamilyProducts
TRGNR/L-F
HAND Cutting direction
L - Left
ID Technical product number
6123176
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree

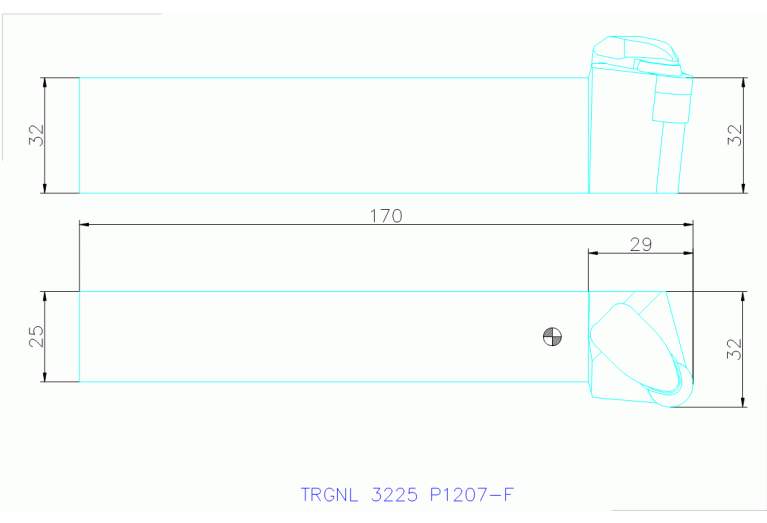

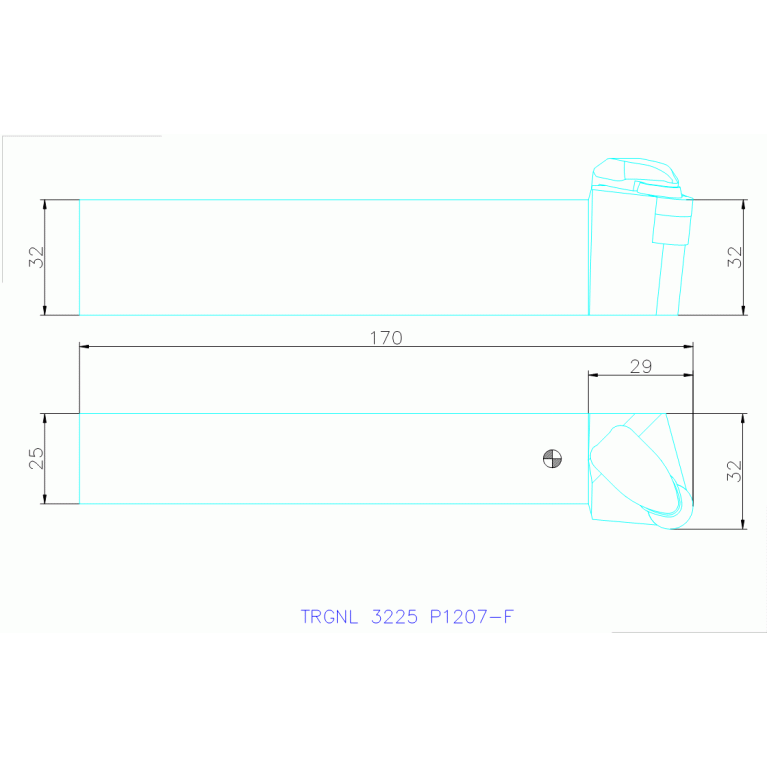

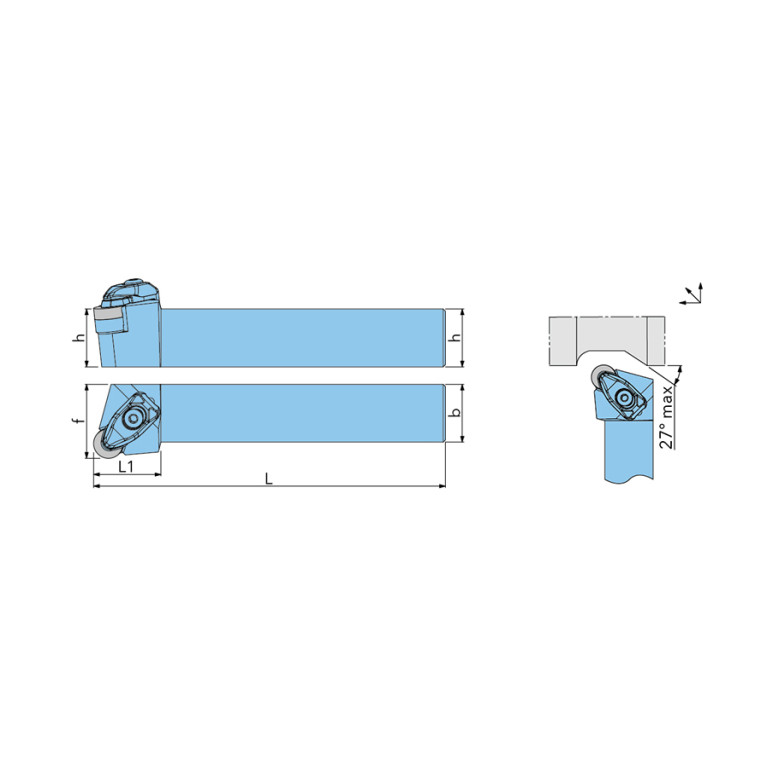

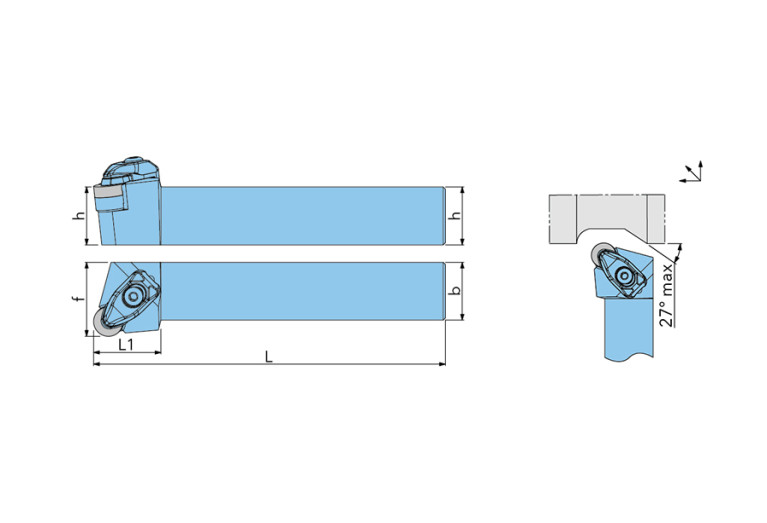

LF Functional length
170 mm
LH Head length
29 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3225
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32250105
MIID Master insert identification
RN N1207
Name Identifying order number
TRGNL 3225 P1207-F
OAL Overall length
170 mm
STDDES Standard designation
TRGNL 3225 P1207-F
SX Shank cross section shape code
02 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
1.065 kg
