Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning TRGNL 2020 K1204-F

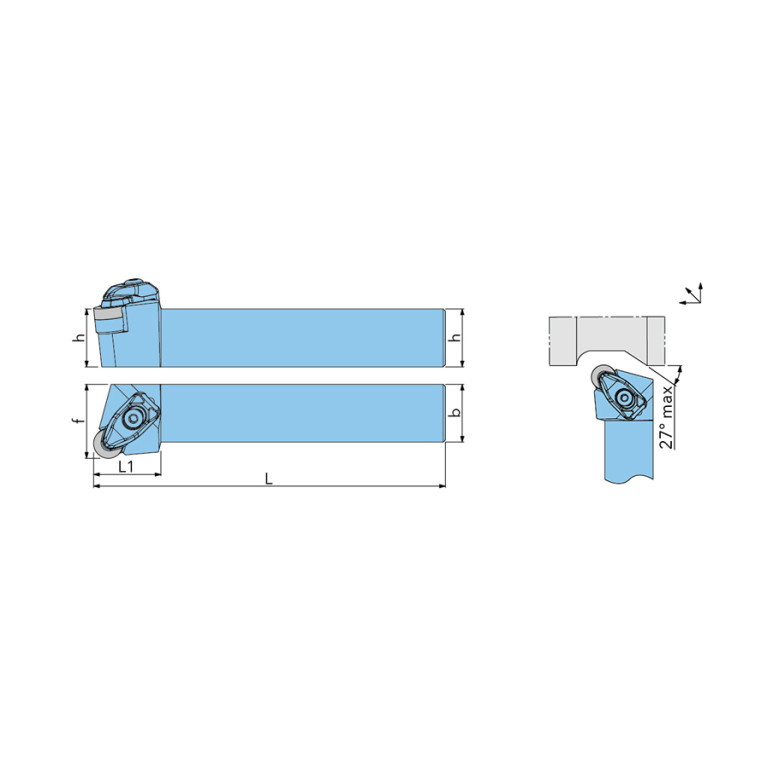

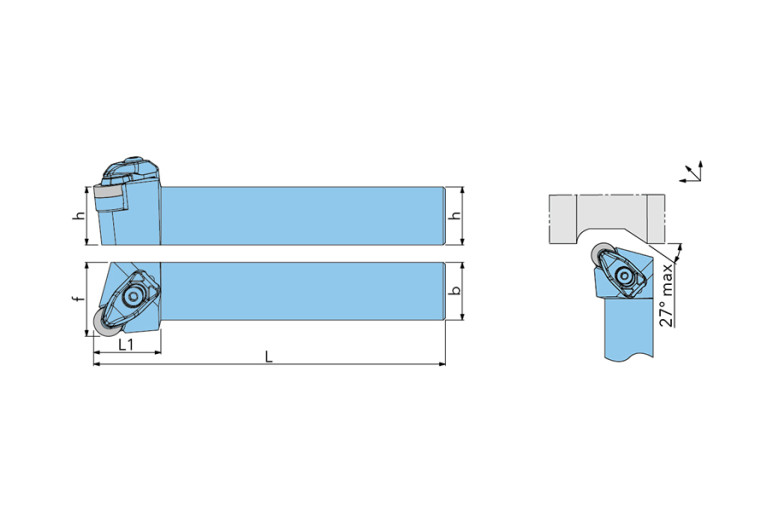

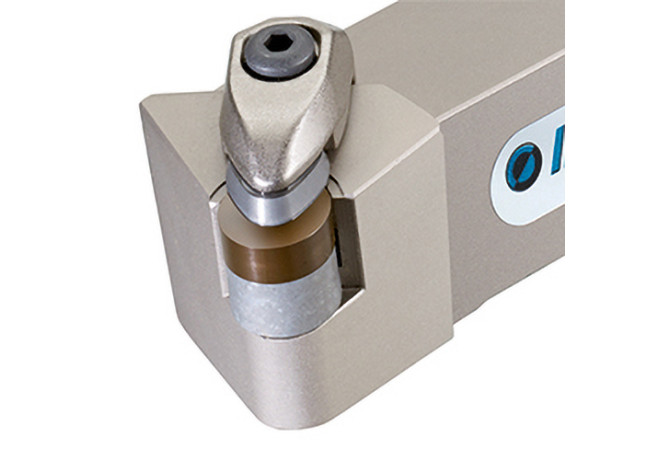

TRGNL 2020 K1204-F

TRGNL 2020 K1204-F TRGNL 2020 K1204-F TRGNL 2020 K1204-F TRGNL 2020 K1204-F

TRGNL 2020 K1204-F

Ingersoll
Артикул: 6123169
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
VKT20200105
DIN CSW1
RN1204001N
FamilyProducts
TRGNR/L-F
HAND Cutting direction
L - Left
ID Technical product number
6123169
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree

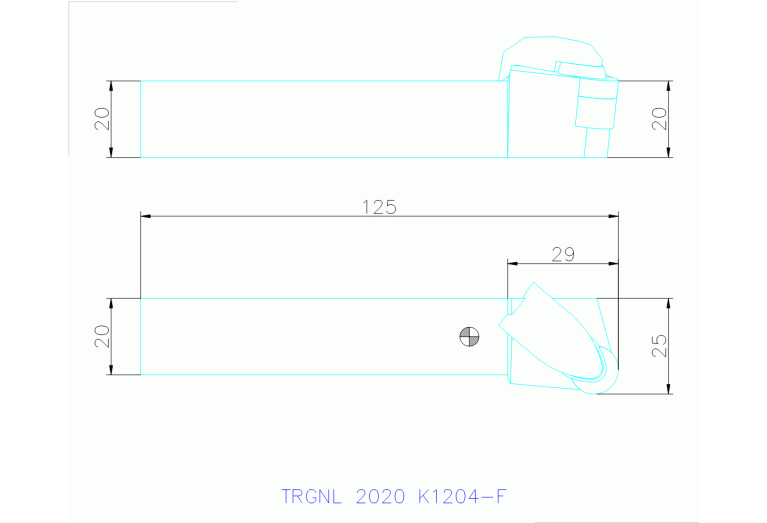

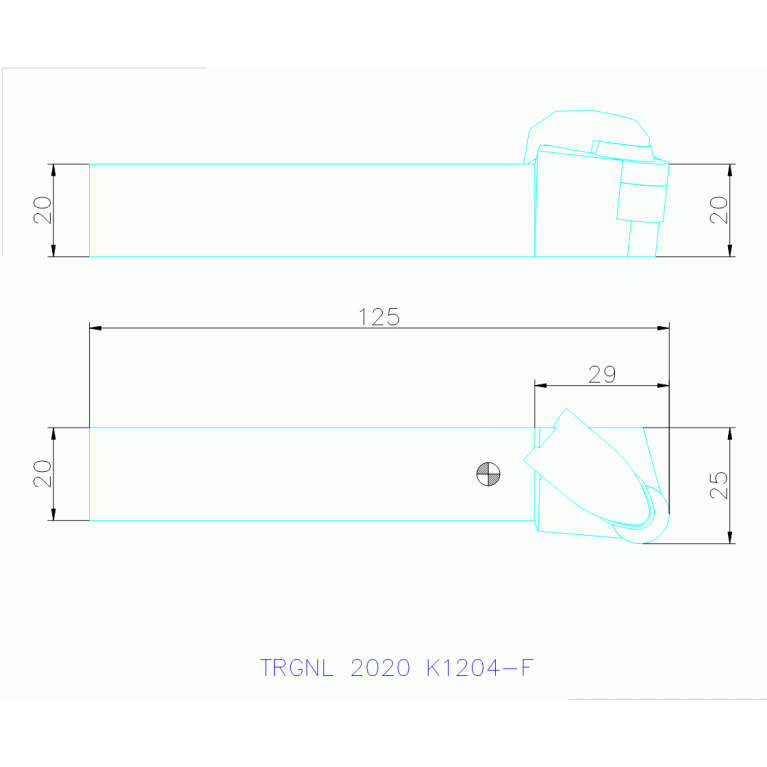

LF Functional length
125 mm
LH Head length
29 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
RN N1204
Name Identifying order number
TRGNL 2020 K1204-F
OAL Overall length
125 mm
STDDES Standard designation
TRGNL 2020 K1204-F
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
25 mm
Working process
No working processes available
WT Weight of item
0.41 kg
