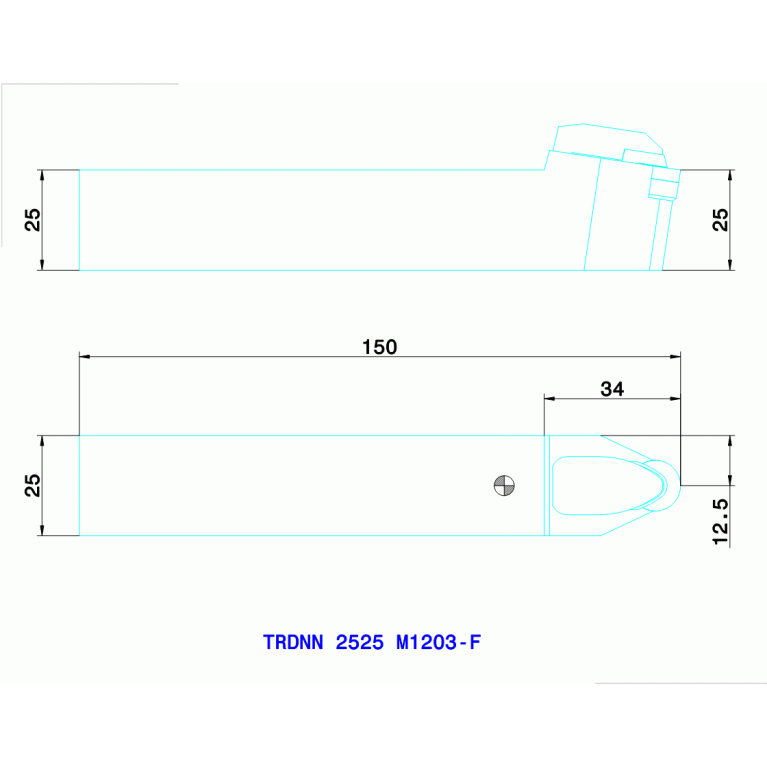

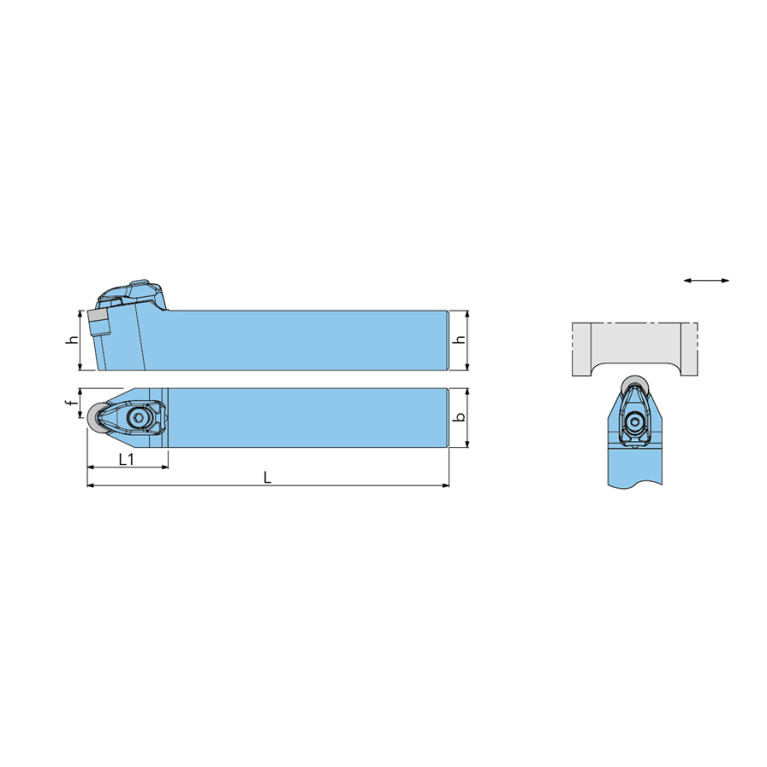

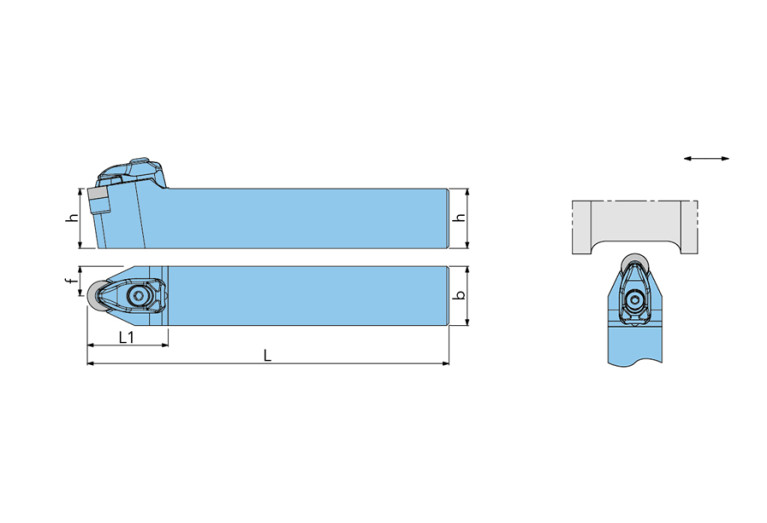

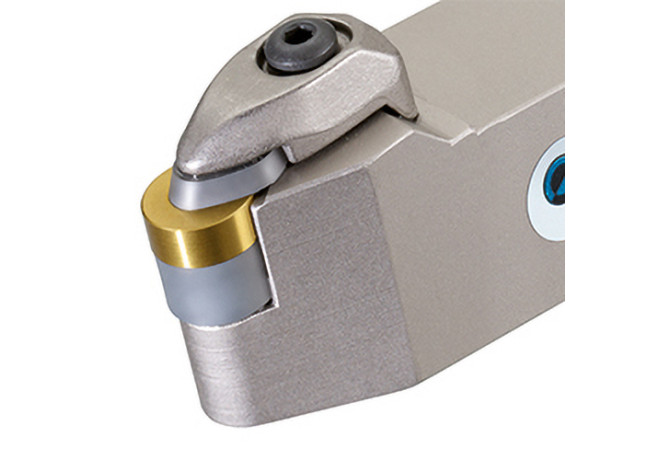

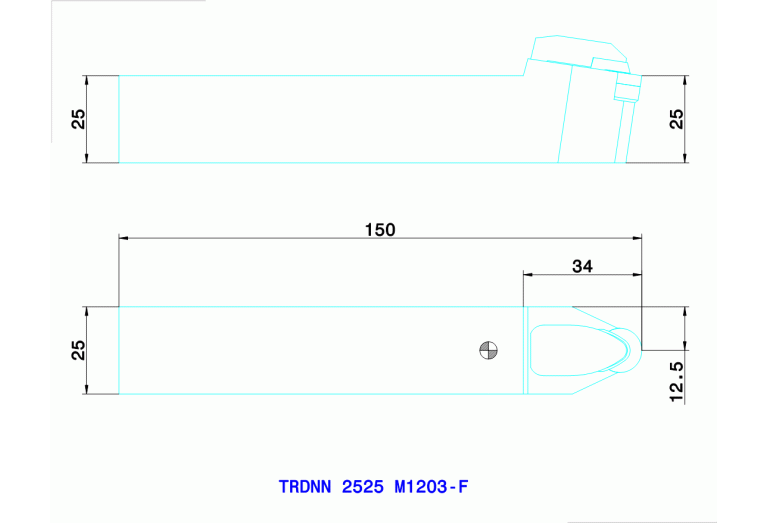

TRDNN 2525 M1203-F

TRDNN 2525 M1203-F TRDNN 2525 M1203-F TRDNN 2525 M1203-F TRDNN 2525 M1203-F

TRDNN 2525 M1203-F

Ingersoll
Артикул: 6123164
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
10
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
VKT25250105
DIN CSW1
RN1203001N
FamilyProducts
TRDNN-F
HAND Cutting direction
N - Neutral
ID Technical product number
6123164
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LF Functional length
150 mm
LH Head length
34 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
RN N1203
Name Identifying order number
TRDNN 2525 M1203-F
OAL Overall length
150 mm
STDDES Standard designation
TRDNN 2525 M1203-F
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
12.5 mm
Working process
No working processes available
WT Weight of item
0.705 kg
