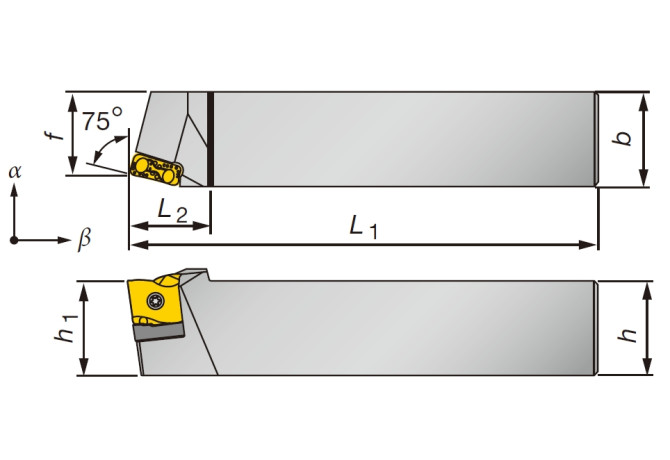

TLBNL4040R24

TLBNL4040R24 TLBNL4040R24

TLBNL4040R24

Tungaloy
Артикул: TLBNL4040R24
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.4 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
20.5 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2013
DIN
VKT40400105
DIN CSW1
LN2410 7R
FamilyProducts
External toolholder TLBN-type for turning
GAMF Rake angle radial
-7.4 Degree
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
24 mm
LF Functional length
200 mm
LH Head length
35 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
4040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
TLBNL4040R24
OAL Overall length
200 mm
STDDES Standard designation
TLBNL4040R24
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
Working process
DDA - External turning
