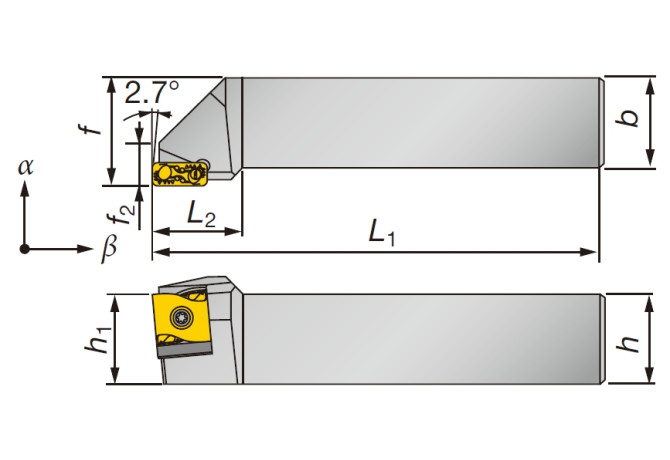

TLANL2020K12

Артикул: TLANL2020K12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

4.8 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

11.6 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2013

DIN

VKT20200105

DIN CSW1

LN1204 7L

FamilyProducts

External toolholder TLAN-type for turning & facing

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

L - Left

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

92.7 Degree

L Cutting edge length

12 mm

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

TLANL2020K12

OAL Overall length

125 mm

STDDES Standard designation

TLANL2020K12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

25 mm

Working process

DDA - External turning
