Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning TCNR0025S22DT

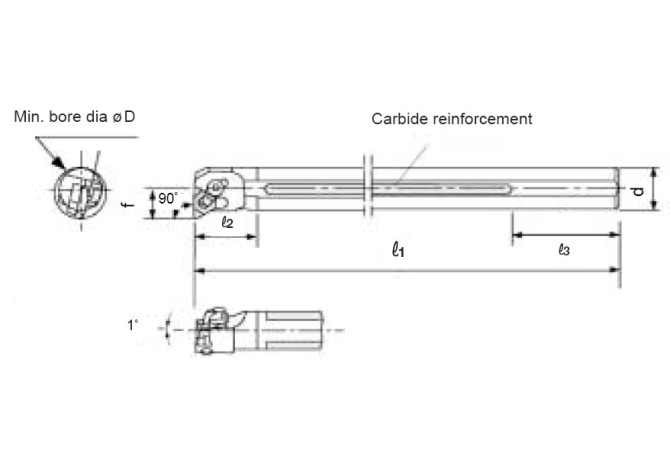

TCNR0025S22DT

Артикул: 6815430

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

G - Hard metal shank with steel head, with vibration absorber and internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/24/2006

DIN

ZYL02502215

DIN CSW1

TT-22NR

DMIN Minimum bore diameter

30 mm

FamilyProducts

Solid Carbide Strengthened Boring Bar

GAMF Rake angle radial

15 Degree

GAMO Rake angle orthogonal

1 Degree

HAND Cutting direction

R - Right

HF Functional height

11.5 mm

ID Technical product number

6815430

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LF Functional length

190 mm

LH Head length

38 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

Name Identifying order number

TCNR0025S22DT

OAL Overall length

250 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

18.2 mm

Working process

DDI - Internal turning
