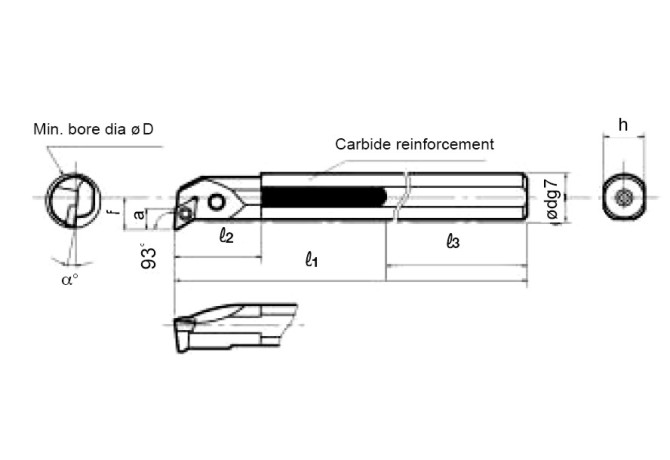

T20R-SDUCR11C

Артикул: T20R-SDUCR11C

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.4 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCC Design configuration style code

G - Hard metal shank with steel head, with vibration absorber and internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/24/2006

DIN

ZYL02002215

DIN CSW1

DC11T3 3N

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Solid Carbide Strengthened Boring Bar

GAMF Rake angle radial

8 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

9 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

150 mm

LH Head length

35 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

T20R-SDUCR11C

OAL Overall length

200 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

13 mm

Working process

DDI - Internal turning
