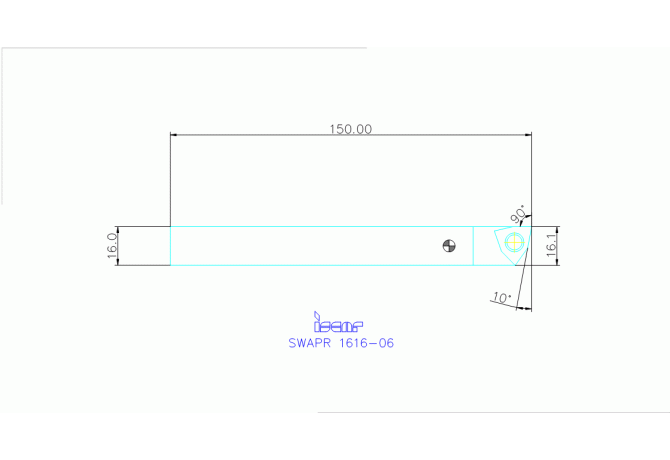

SWAPR 1616-06

Артикул: 3730109

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT16160105

FamilyProducts

SWAPR 1616-06

HAND Cutting direction

R - Right

ID Technical product number

3730109

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

Name Identifying order number

SWAPR 1616-06

OAL Overall length

150 mm

STDNO Standard

SWAPR161606

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

16.1 mm

Working process

No working processes available
