Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SVVBN 1010 K11-SH

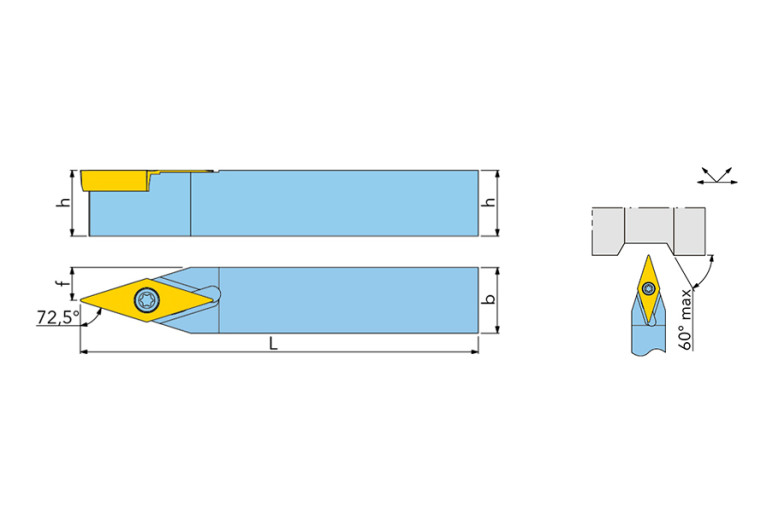

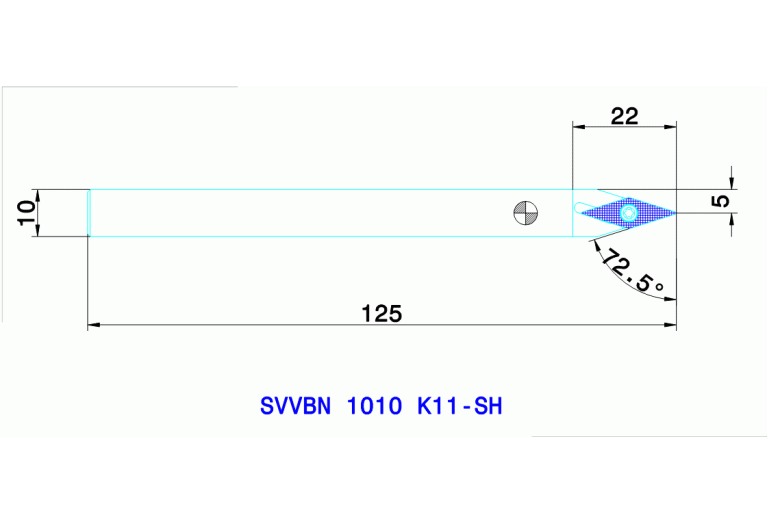

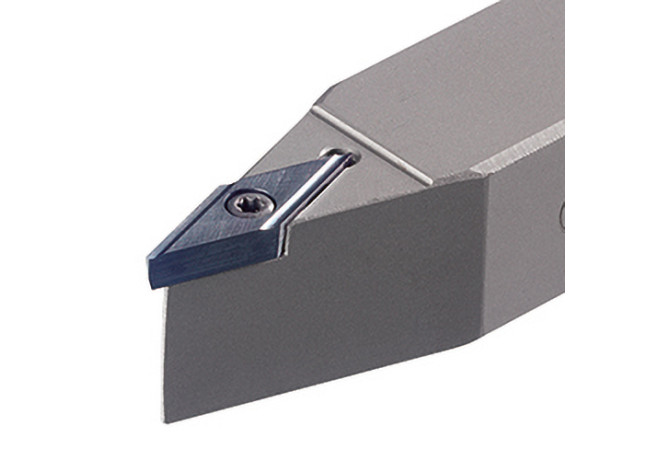

SVVBN 1010 K11-SH

SVVBN 1010 K11-SH SVVBN 1010 K11-SH SVVBN 1010 K11-SH SVVBN 1010 K11-SH

SVVBN 1010 K11-SH

Ingersoll
Артикул: 3604100
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT10100105
DIN CSW1
VB1103043N
EPSR Insert included angle
35 Degree
FamilyProducts
SVVBN-SH
HAND Cutting direction
N - Neutral
ID Technical product number
3604100
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
72.5 Degree
LF Functional length
125 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1010
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
MIID Master insert identification
VB 1103
Name Identifying order number
SVVBN 1010 K11-SH
OAL Overall length
125 mm
STDDES Standard designation
SVVBN 1010 K11-SH
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
5 mm
Working process
No working processes available
WT Weight of item
0.09 kg
