Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SVVB N 1616 H11

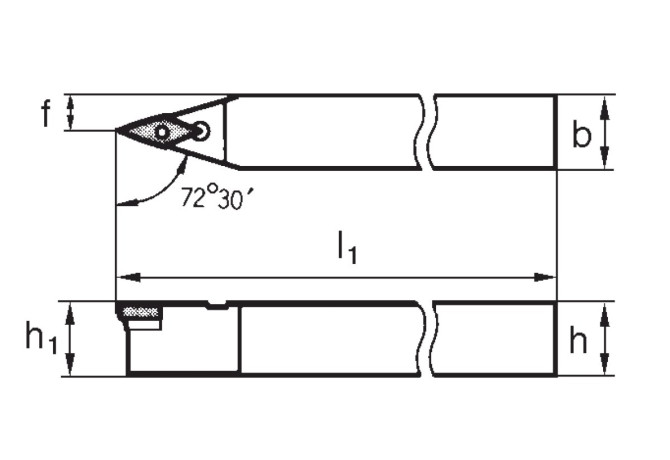

SVVB N 1616 H11

SVVB N 1616 H11 SVVB N 1616 H11

SVVB N 1616 H11

Sumitomo
Артикул: SVVB N 1616 H11
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT16160105
DIN CSW1
VB1102 3N
EPSR Insert included angle
35 Degree
FamilyProducts
S-type screw-on toolholder SVVBN
HAND Cutting direction
N - Neutral
HF Functional height
16 mm
ID Technical product number
SVVB N 1616 H11
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
72.5 Degree
L Cutting edge length
11 mm
LF Functional length
100 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
VBMA110204
Name Identifying order number
SVVB N 1616 H11
OAL Overall length
100 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
8 mm
Working process
No working processes available
