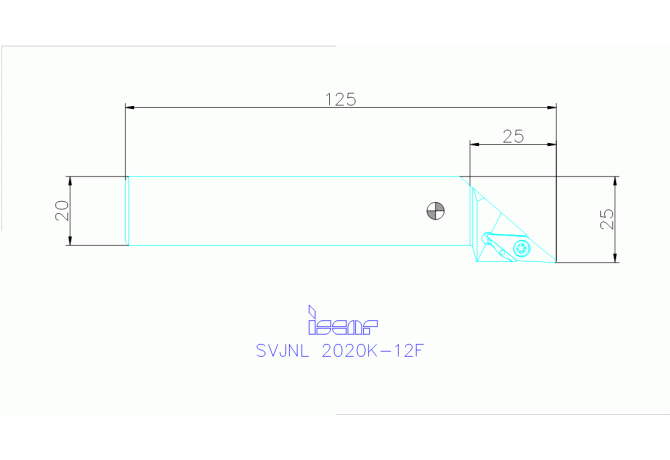

SVJNL 2020K-12F

Артикул: 3601914

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT20200105

FamilyProducts

SVJNL 2020K-12F

HAND Cutting direction

L - Left

ID Technical product number

3601914

Interface codes

J6 / J61

ISO

VKT01A2020$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

25 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

Name Identifying order number

SVJNL 2020K-12F

OAL Overall length

125 mm

STDNO Standard

SVJNL2020K12F

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
