Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SVJDR1616H16

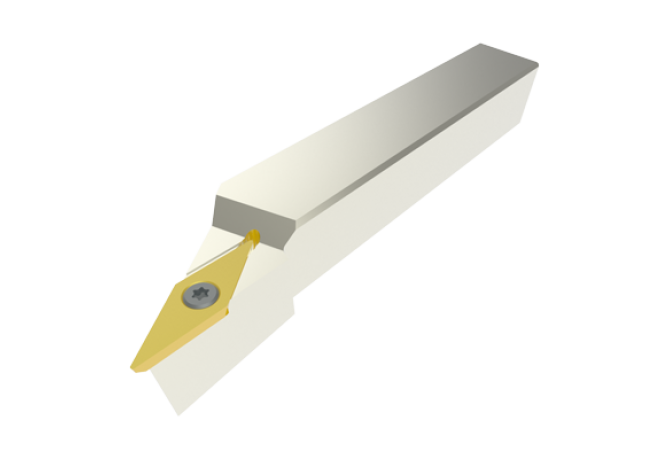

SVJDR1616H16

SVJDR1616H16 SVJDR1616H16 SVJDR1616H16

SVJDR1616H16

Mitsubishi Materials
Артикул: 449393
В наличии
В корзину
Описание
Характеристики

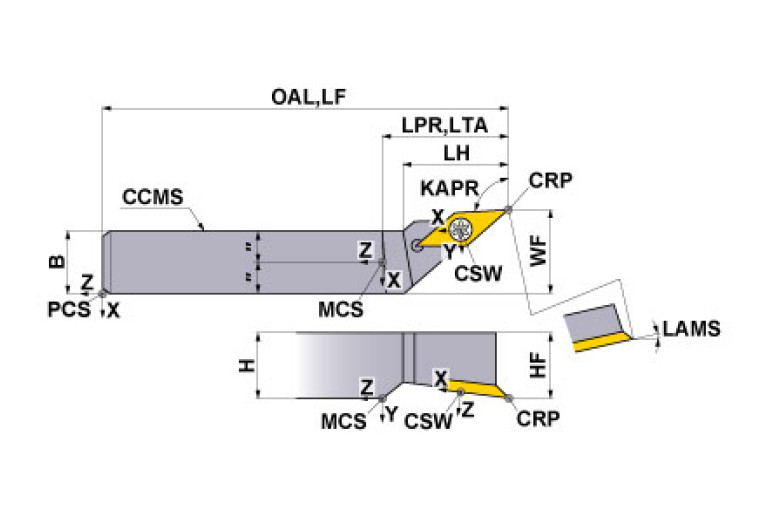

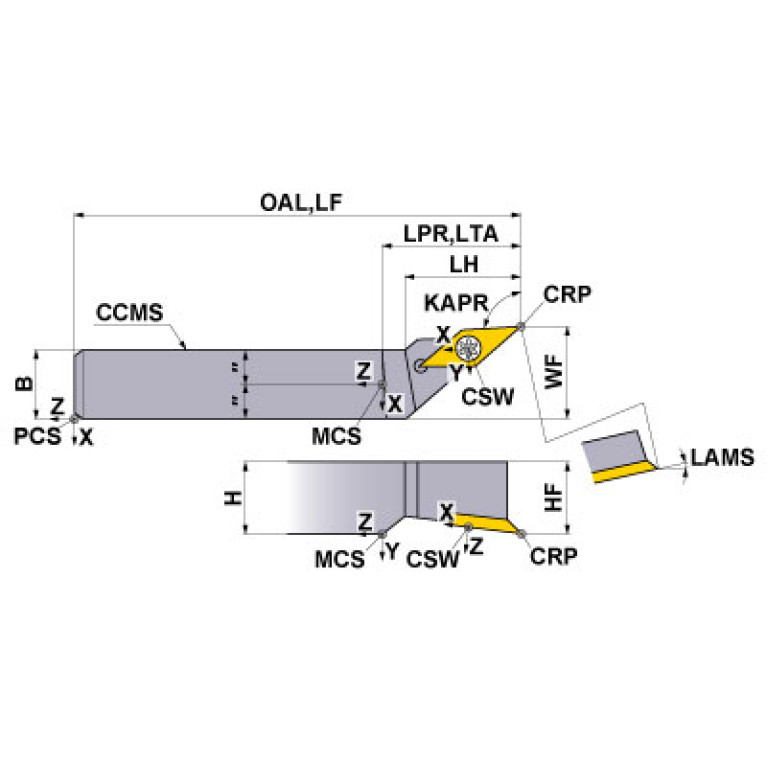

A2A Clearance angle major Pos. A
15 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.18 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
Delivery state valid from
4/1/2022
DIN
VKT16160105
DIN CSW1
MI-VD1603 7R
FamilyProducts
external turning tools
HAND Cutting direction
R - Right
HF Functional height
16 mm
ID Technical product number
449393
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
100 mm
LH Head length
30 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
VD 1603
Name Identifying order number
SVJDR1616H16
OAL Overall length
100 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
20 mm
Working process
No working processes available
