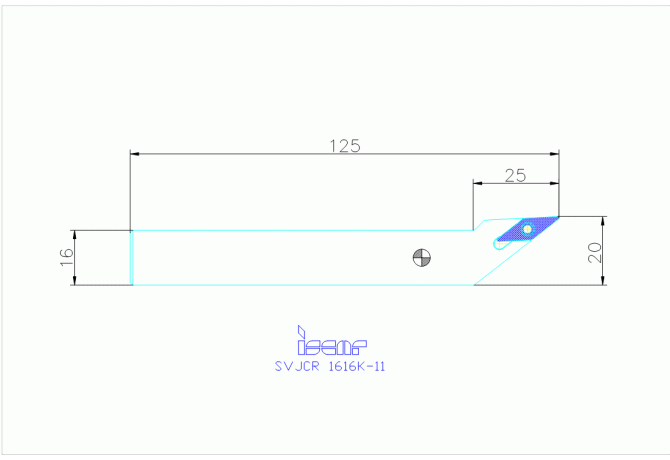

SVJCR 1616K-11

SVJCR 1616K-11 SVJCR 1616K-11

SVJCR 1616K-11

Iscar
Артикул: 3603053
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
VKT16160105
EPSR Insert included angle
35 Degree
FamilyProducts
SVJCR 1616K-11
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
HF Functional height
16 mm
ID Technical product number
3603053
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LF Functional length
125 mm
LH Head length
25 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
Name Identifying order number
SVJCR 1616K-11
OAL Overall length
125 mm
STDNO Standard
SVJCR1616K11
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
20 mm
Working process
No working processes available
