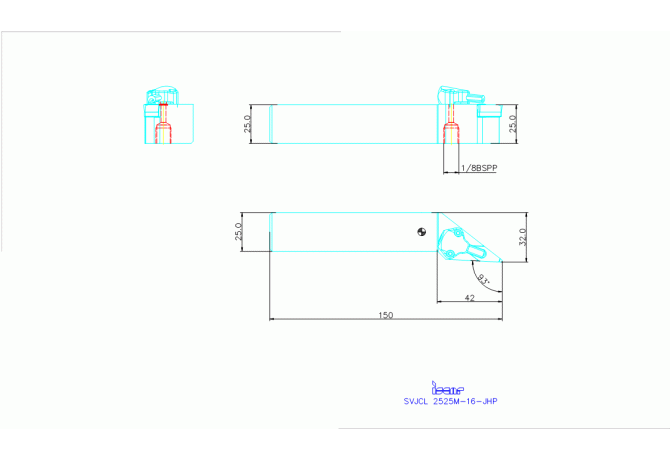

SVJCL 2525M-16-JHP

Артикул: 3603244

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/7/2014

DIN

VKT25250115

EPSR Insert included angle

35 Degree

FamilyProducts

Screw Lock Toolholders for 35° Rhombic Insert with

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

3603244

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

16 mm

LF Functional length

150 mm

LH Head length

42 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

MIID Master insert identification

VCMT1604

Name Identifying order number

SVJCL 2525M-16-JHP

OAL Overall length

150 mm

STDNO Standard

SVJCL 2525M-16

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

32 mm

Working process

No working processes available
