Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SVHBR2525M11

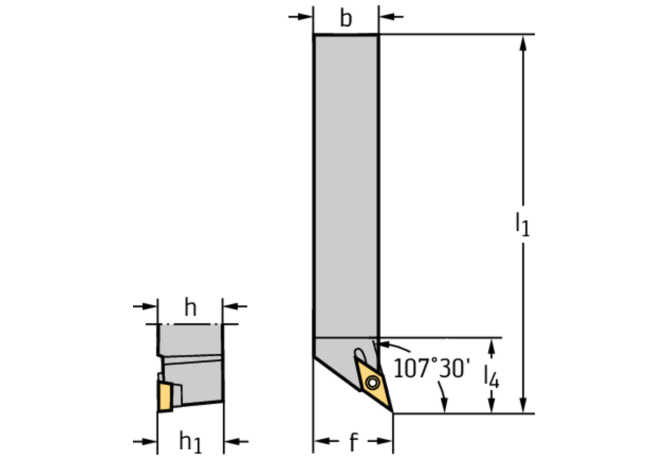

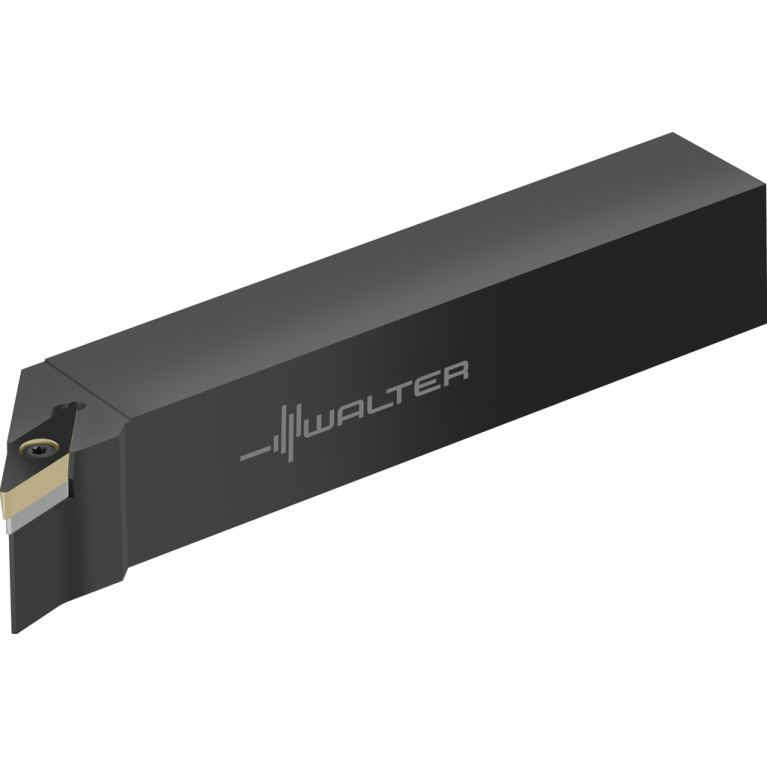

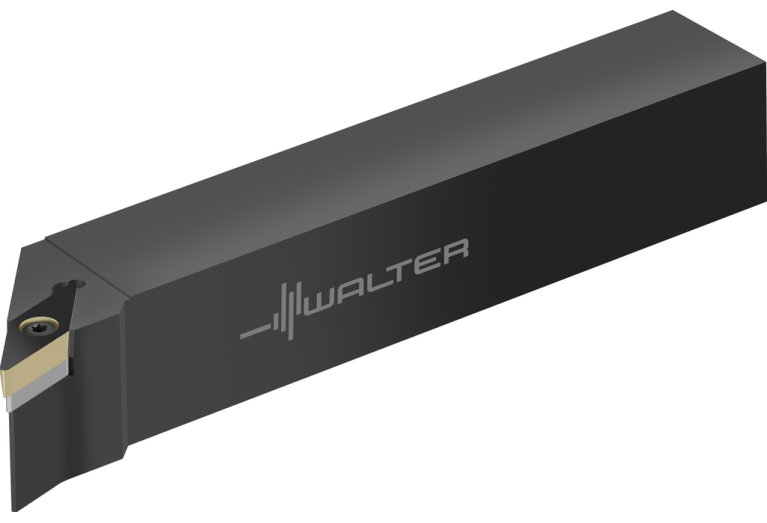

SVHBR2525M11

SVHBR2525M11 SVHBR2525M11 SVHBR2525M11

SVHBR2525M11

Walter
Артикул: 5335858
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT25250105
DIN CSW1
VB1103993N
EPSR Insert included angle
35 Degree
FamilyProducts
Shank tool – Screw clamping SVHB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
5335858
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01A2525$$$$
ISO CSW1
ISO$VB1103003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
17.5 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2525
LOC-03 H Shank height
25 mm
LOC-03 ISO
VKT01A2525$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
LPR Protruding length
150 mm
MIID Master insert identification
VBMT 11 03 04
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SVHBR2525M11
OAL Overall length
150 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
32 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.71 kg
