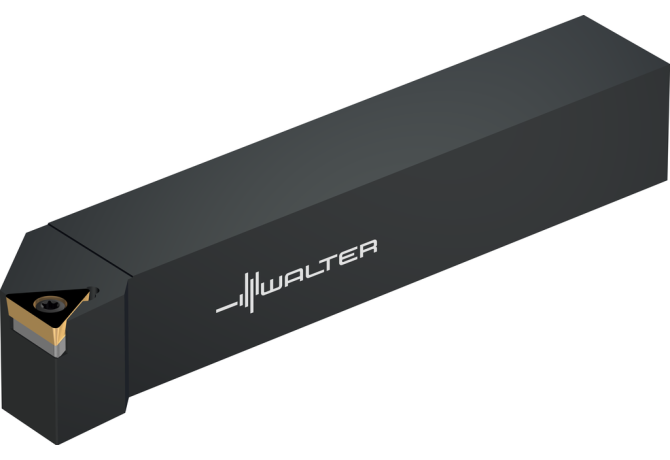

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning STFCL082B

STFCL082B

STFCL082B STFCL082B STFCL082B

STFCL082B

Walter
Артикул: 5364805
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT08080125
DIN CSW1
TC1102993N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Shank tool – Screw clamping STFC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
12.7 mm
ID Technical product number
5364805
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01B0808$$$$
ISO CSW1
ISO$TC1102003******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

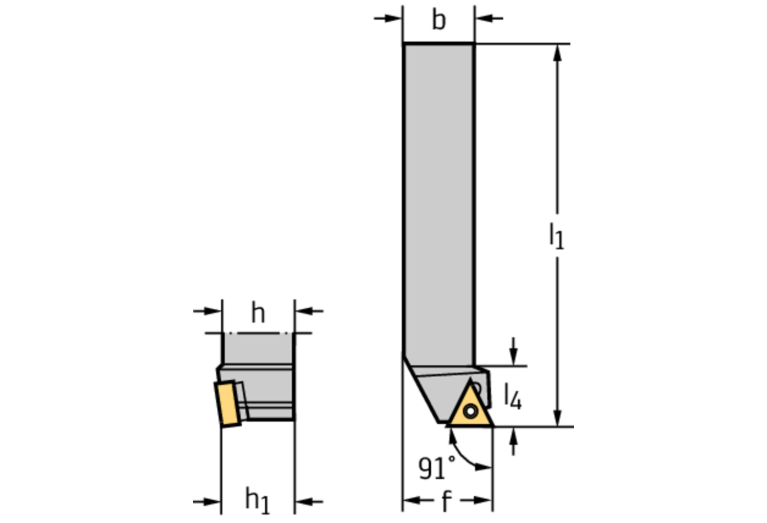

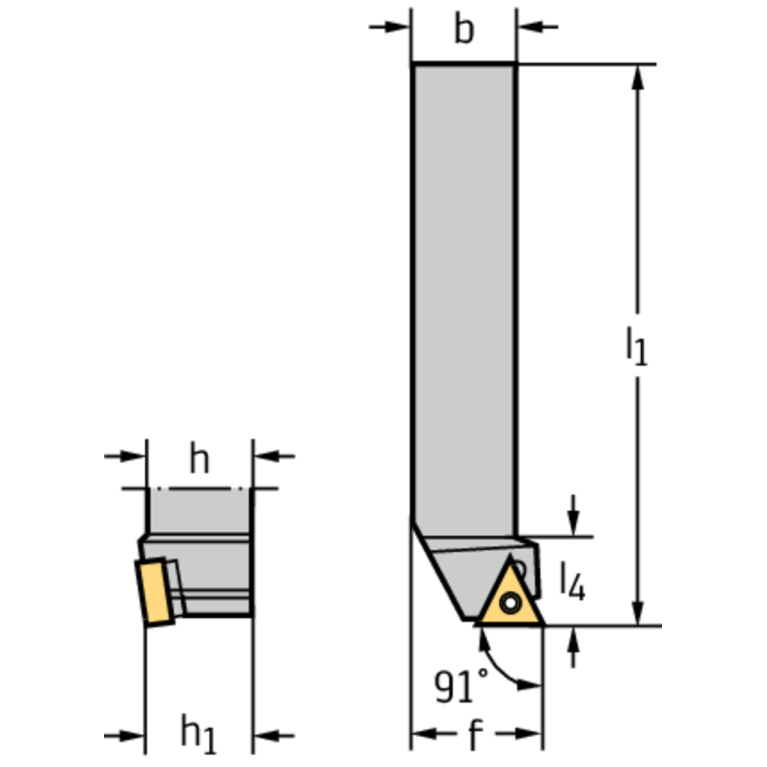

KAPR Tool cutting edge angle
91 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LF Functional length
15 mm
LOC-03 B Shank width
12.7 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0808
LOC-03 H Shank height
12.7 mm
LOC-03 ISO
VKT01B0808$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT08080125
LPR Protruding length
15 mm
MIID Master insert identification
TCMT 2(1.5)1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
STFCL082B
OAL Overall length
15 mm
WF Functional width
14 mm
Working process
DDA - External turning
WT Weight of item
0.168 kg
