Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SSDCR2020K12

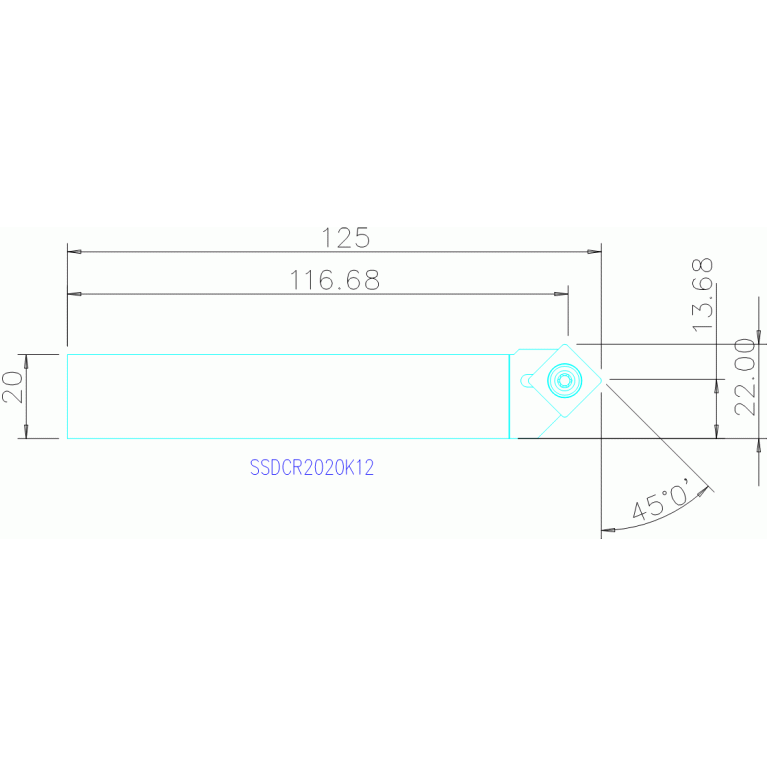

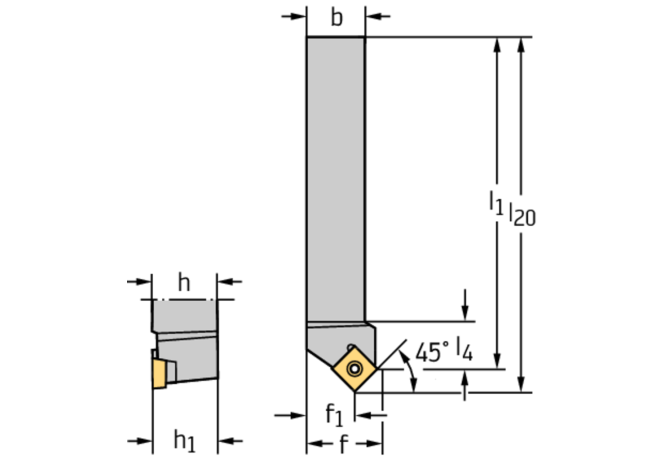

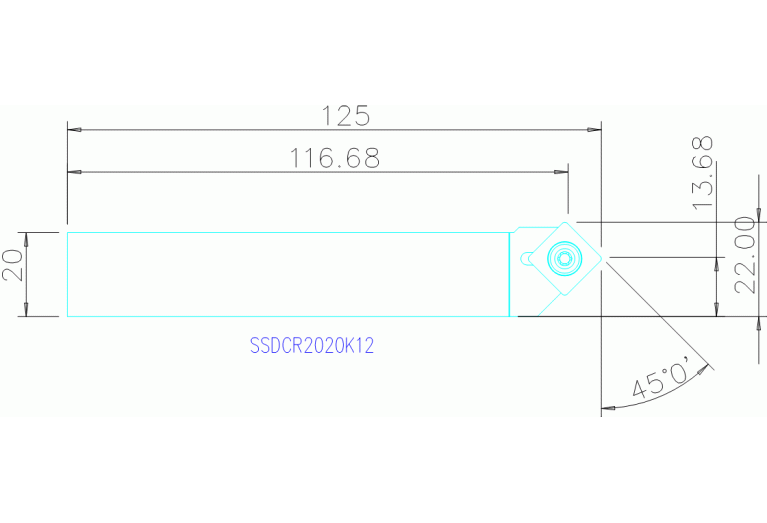

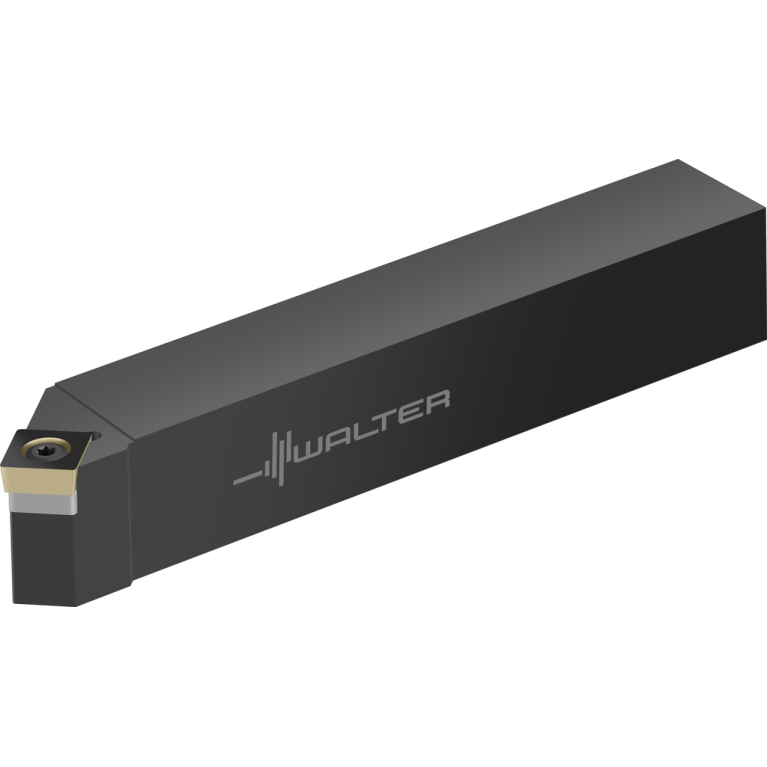

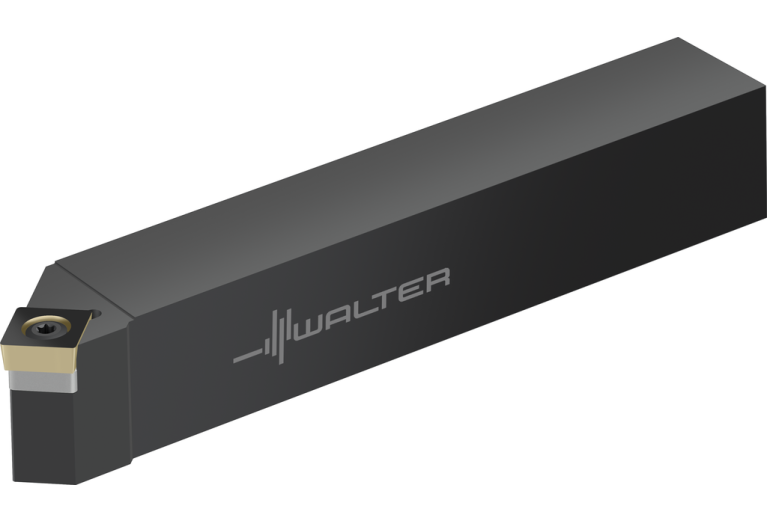

SSDCR2020K12

SSDCR2020K12

Walter

Артикул: 5327624

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

2

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT20200105

DIN CSW1

SC1204993N

EPSR Insert included angle

90 Degree

FamilyProducts

Shank tool – Screw clamping SSDC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

5327624

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

VKT01A2020$$$$

ISO CSW1

ISO$SC1204003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

12.7 mm

LAMS Inclination angle

0 Degree

LF Functional length

125.02 mm

LFA A dimension on lf

8.32 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

LPR Protruding length

125.02 mm

MIID Master insert identification

SCMT 12 04 08

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SSDCR2020K12

OAL Overall length

125.02 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

22 mm

Working process

DDA - External turning

WT Weight of item

0.4 kg
